Steering Column Lock Module — 2016 workshop reference 3406

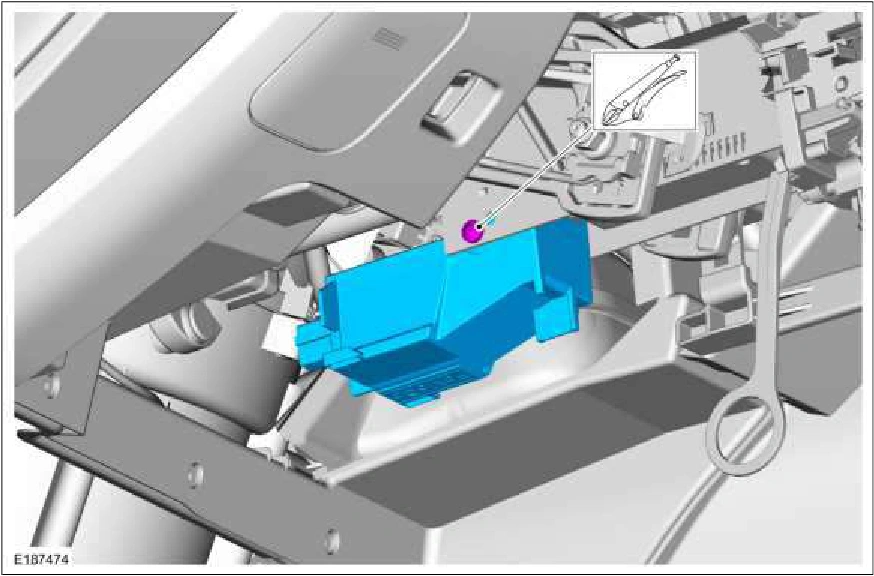

Steering Column Lock Module — original illustration 1, reference 3406Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the BCM following the on-screen instructions.

3. NOTE: This step is only necessary when installing a new component.

Carry out the BCM to steering column lock module training procedure.

4. NOTE: This step is only necessary when installing a new component.

Carry out the BCM self-test. Clear the Diagnostic Trouble Codes (DTCs) and then retrieve the Diagnostic Trouble Codes (DTCs) from the BCM to confirm all Diagnostic Trouble Codes (DTCs) have been cleared.
