Steering Column Control Module (SCCM)

211-05 Steering Wheel and Column Electrical Components 2016 Mustang

Removal and Installation Procedure revision date: 02/20/2015

Removal

NOTE: LHD shown, RHD similar.

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.

2. Remove the steering wheel. Refer to: Steering Wheel (211-04 Steering Column, Removal and Installation).

3. Remove the steering column shrouds. Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).

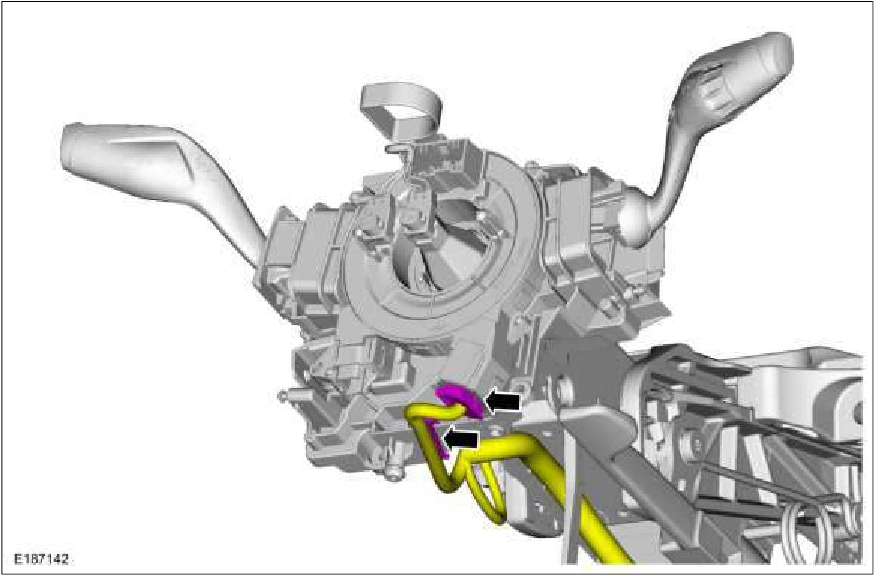

4. Detach the retainer and disconnect the clockspring electrical connector.

Steering Column Control Module (SCCM) — original illustration 1, reference 3403Original colors & callouts · Select to enlarge

Step 5

1. Disconnect the SCCM electrical connector.

2. Remove the retainers. Torque : 27 lb.in (3 Nm)

Source reference 3403
