Steering Column Control Module (SCCM) — 2016 workshop reference 3404

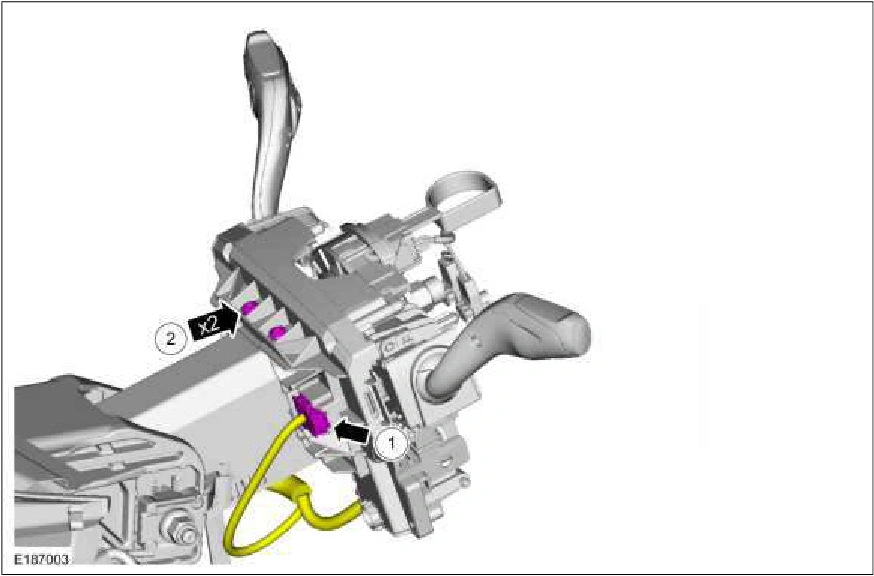

Steering Column Control Module (SCCM) — original illustration 1, reference 3404Original colors & callouts · Select to enlarge

Step 6

1. Pull the SCCM retaining clip.

2. Remove the SCCM from steering column.

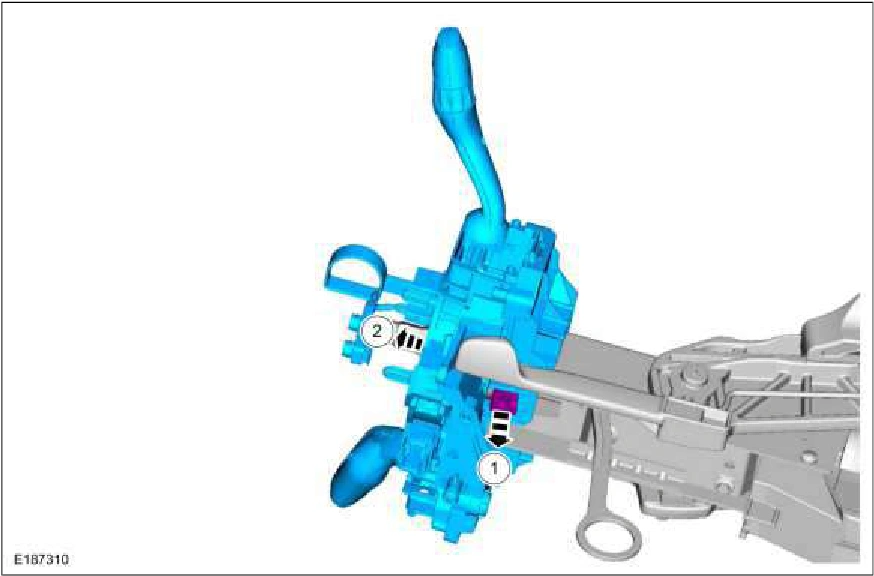

Steering Column Control Module (SCCM) — original illustration 2, reference 3404Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the SCCM following the on-screen instructions.

Source reference 3404
