2016 workshop · Engine

Valve Cover LH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 360 / 6,619HTML edition
← Chapter contentsProcedure contents

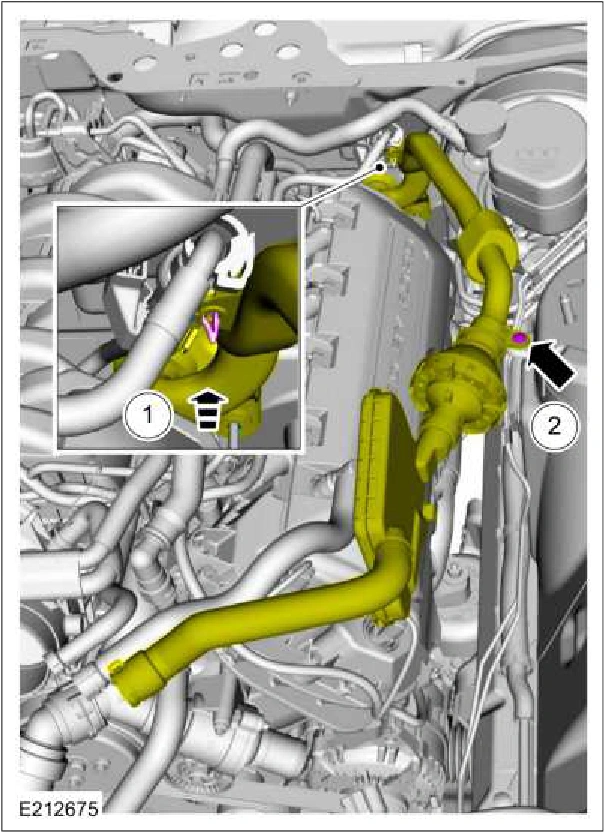

Valve Cover LH — original illustration 1, reference 360Original colors & callouts · Select to enlarge

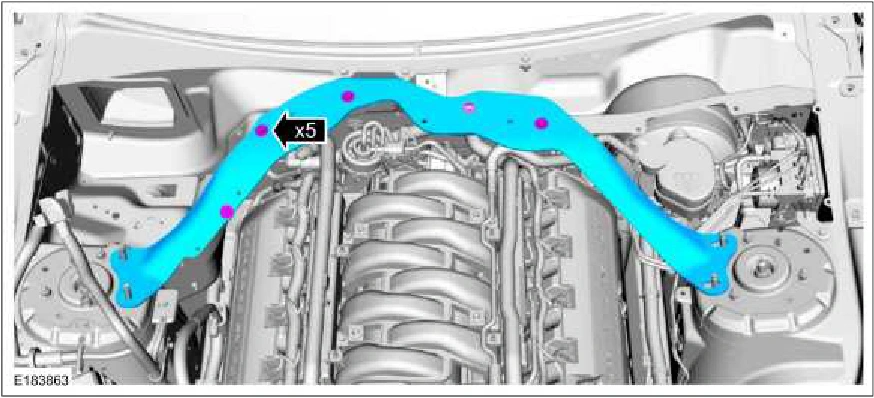

12. Install the cowl extension and fasteners. Torque : 26 lb.ft (35 Nm)

Valve Cover LH — original illustration 2, reference 360Original colors & callouts · Select to enlarge

13. Install the following items:

1. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

2. Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT

V8 (308kW/418PS), Removal and Installation).

3. Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).
