Valve Cover LH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 358 / 6,619HTML edition
← Chapter contentsProcedure contents
Valve Cover LH — original illustration 1, reference 358Original colors & callouts · Select to enlarge

7. Attach the wiring harness retainers. Connect the VCT variable force solenoid electrical connectors.

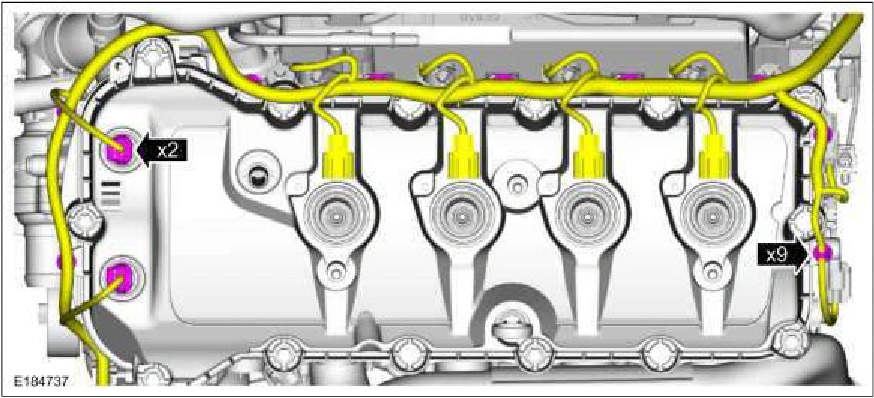

Valve Cover LH — original illustration 2, reference 358Original colors & callouts · Select to enlarge

8. Install the LH ignition coils. Refer to: Ignition Coil-On-Plug (303-07C Engine Ignition - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

Step 9

1. Position the fuel tube and connect the quick release couplings. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

2. Install the safety clip.

Source reference 358
