Valve Cover LH — 2016 workshop reference 359

Valve Cover LH — original illustration 1, reference 359Original colors & callouts · Select to enlarge

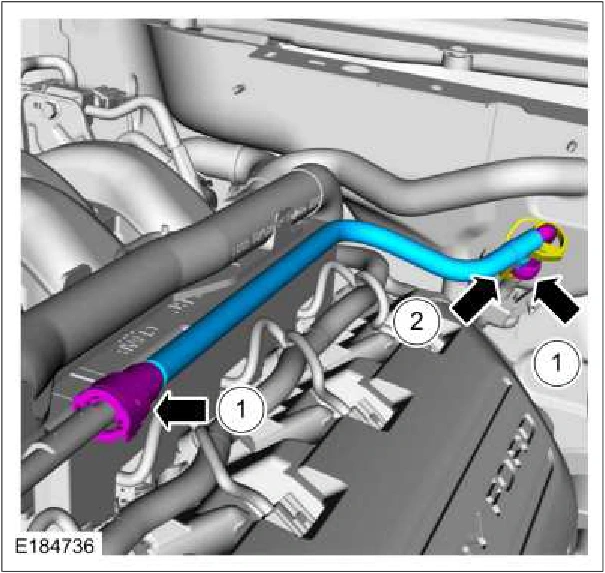

Step 10

1. Connect the EVAP tube coupling.

Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

2. Attach the EVAP tube to the retainers.

Valve Cover LH — original illustration 2, reference 359Original colors & callouts · Select to enlarge

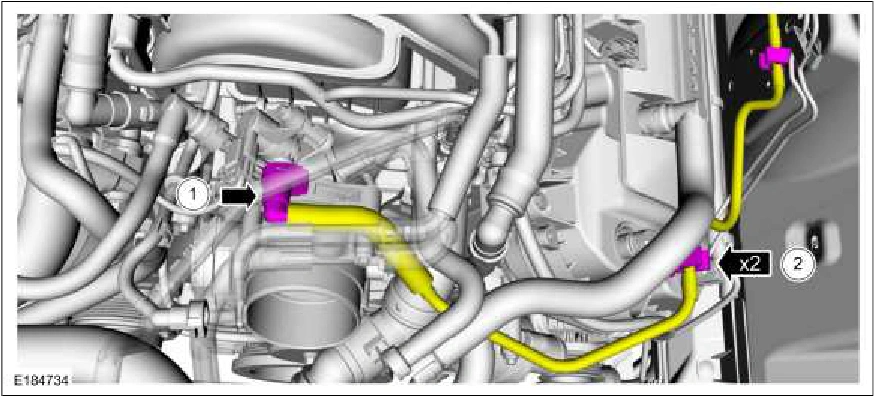

Step 11

1. Position the sound enhancement pipe onto the retainer.

2. Install the pin-type retainer.
