Valve Cover LH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 355 / 6,619HTML edition
← Chapter contentsProcedure contents

Material : Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

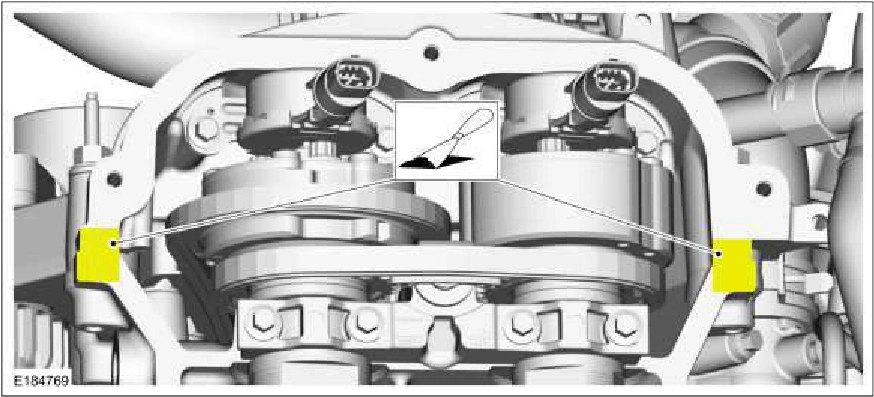

Valve Cover LH — original illustration 1, reference 355Original colors & callouts · Select to enlarge

Installation

1. NOTE: Installation of new seals is only required if damaged seals were removed.

Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Valve Cover LH — original illustration 2, reference 355Original colors & callouts · Select to enlarge

2. NOTE: Installation of new seals is only required if damaged seals were removed.

Using the special tools, install new VCT variable force solenoid seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.

Source reference 355
