Valve Cover LH — 2016 workshop reference 352

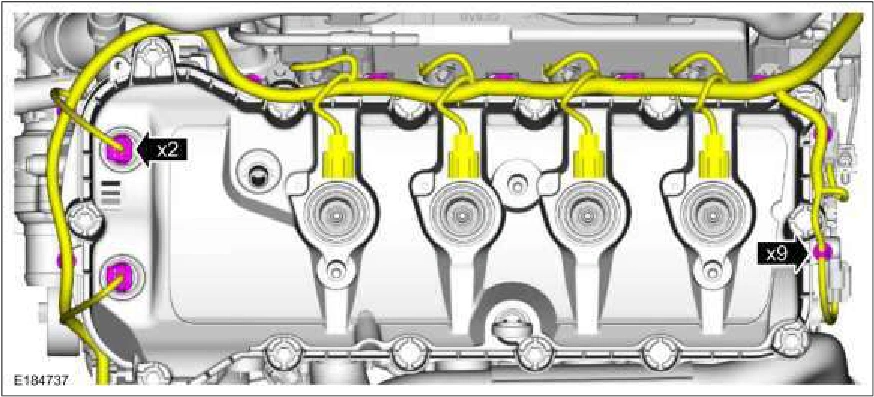

Valve Cover LH — original illustration 1, reference 352Original colors & callouts · Select to enlarge

Step 12

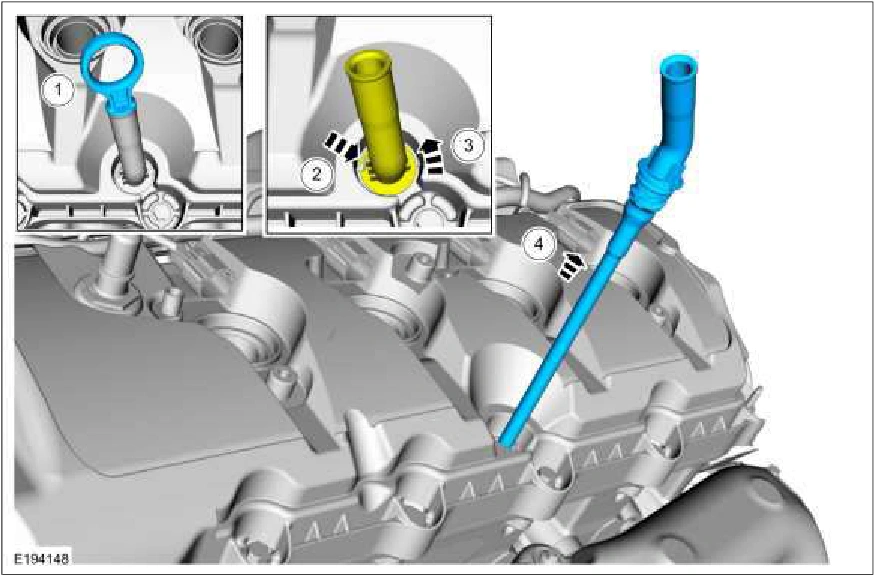

1. Remove the oil level indicator.

2. Depress the tab.

3. Rotate the oil level indicator tube counterclockwise.

4. Pull the oil level indicator tube from the engine.

Valve Cover LH — original illustration 2, reference 352Original colors & callouts · Select to enlarge

13. Loosen the bolts and remove the valve cover.

Source reference 352
