Valve Cover LH — 2016 workshop reference 350

Valve Cover LH — original illustration 1, reference 350Original colors & callouts · Select to enlarge

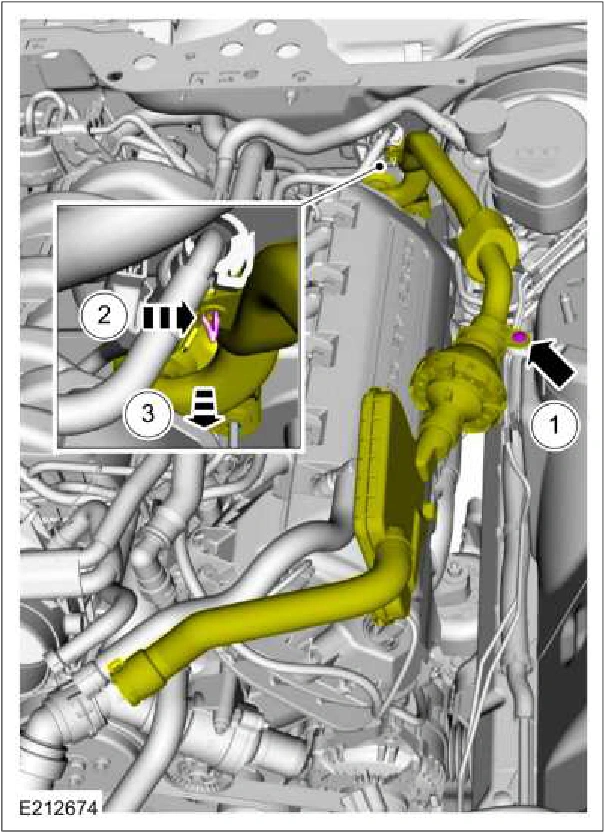

Step 7

1. Remove the pin-type retainer.

2. Depress the retainer.

3. Position the sound enhancement pipe aside.

Valve Cover LH — original illustration 2, reference 350Original colors & callouts · Select to enlarge

Step 8

1. Disconnect the EVAP tube quick release coupling. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

2. Detach the EVAP tube from the retainers.

Source reference 350

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
