Valve Cover LH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 351 / 6,619HTML edition
← Chapter contentsProcedure contents

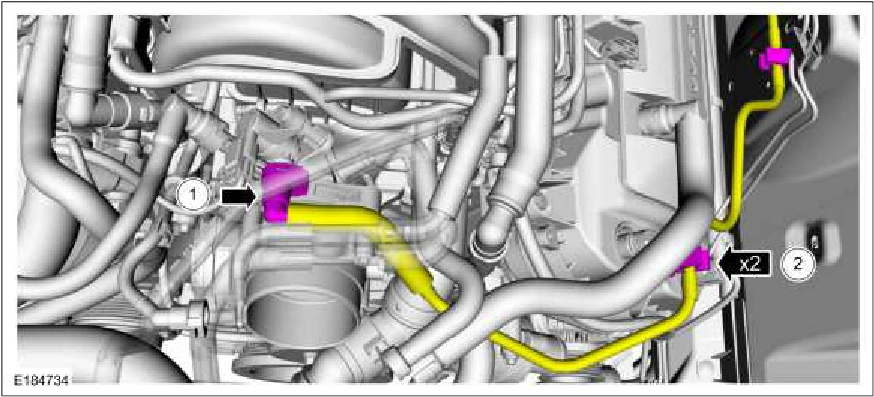

Valve Cover LH — original illustration 1, reference 351Original colors & callouts · Select to enlarge

Step 9

1. Position the safety clip aside.

2. Disconnect the quick release couplings and remove the fuel tube. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

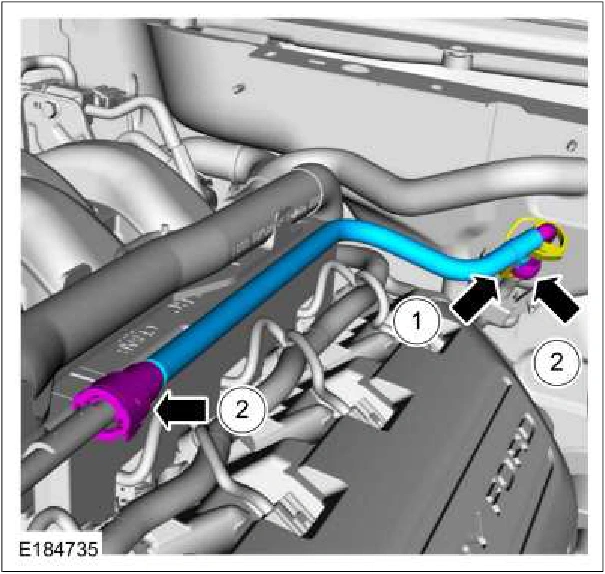

Valve Cover LH — original illustration 2, reference 351Original colors & callouts · Select to enlarge

10. Remove the LH ignition coils. Refer to: Ignition Coil-On-Plug (303-07C Engine Ignition - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

11. Disconnect the VCT variable force solenoid electrical connectors.

Detach the wiring harness retainers.
