Air Conditioning (A/C) Compressor - 3.7L Duratec (227kW/301PS)

412-00 Climate Control System - General Information

2016 MustangReference 3,661 / 6,619HTML edition

← Chapter contents Procedure contents

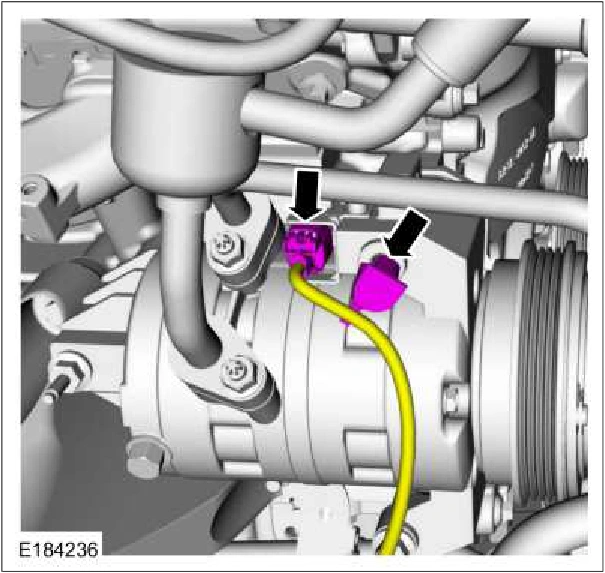

Air Conditioning (A/C) Compressor - 3.7L Duratec (227kW/301PS) — original illustration 1, reference 3661Original colors & callouts · Select to enlarge

4. NOTE: Discard the O-ring seals and gaskets.

NOTE: Make sure that all openings are sealed.

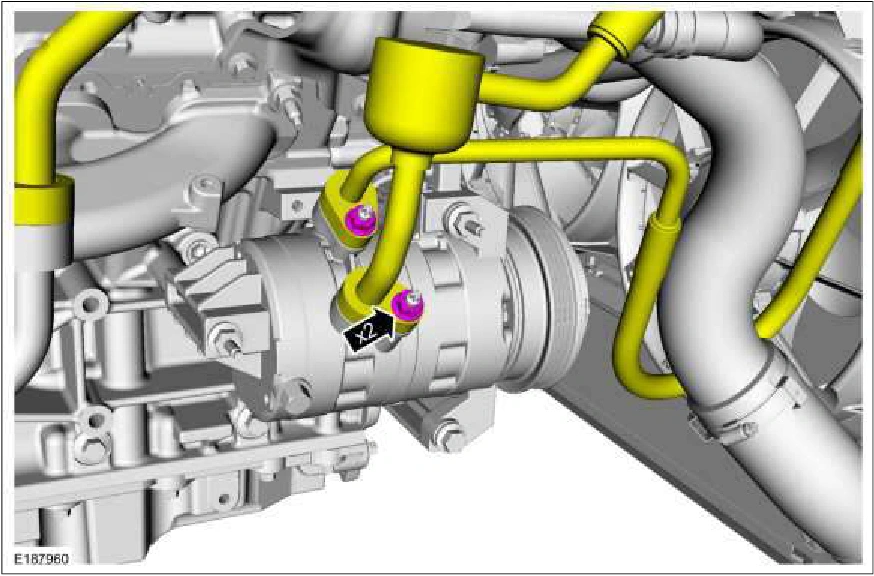

Remove the nuts and disconnect the A/C compressor inlet and outlet lines. Torque : 159 lb.in (18 Nm)

Air Conditioning (A/C) Compressor - 3.7L Duratec (227kW/301PS) — original illustration 2, reference 3661Original colors & callouts · Select to enlarge

5. Remove the bolt, studbolts and the A/C compressor.
