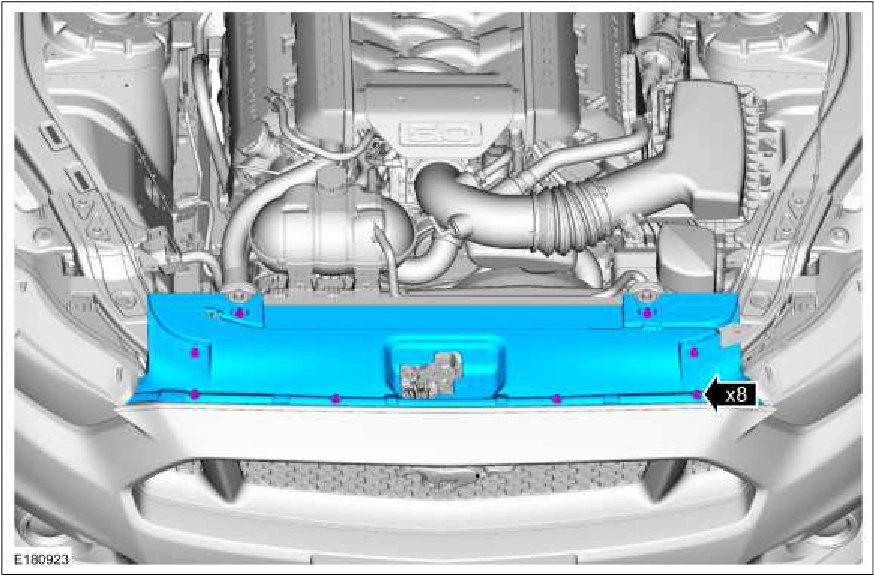

Condenser - 5.2L 32V Ti-VCT — original illustration 1, reference 3747Original colors & callouts · Select to enlarge

7. NOTICE: Make sure that all openings are sealed.

Remove the nut and disconnect the A/C compressor outlet line. Torque : 159 lb.in (18 Nm)

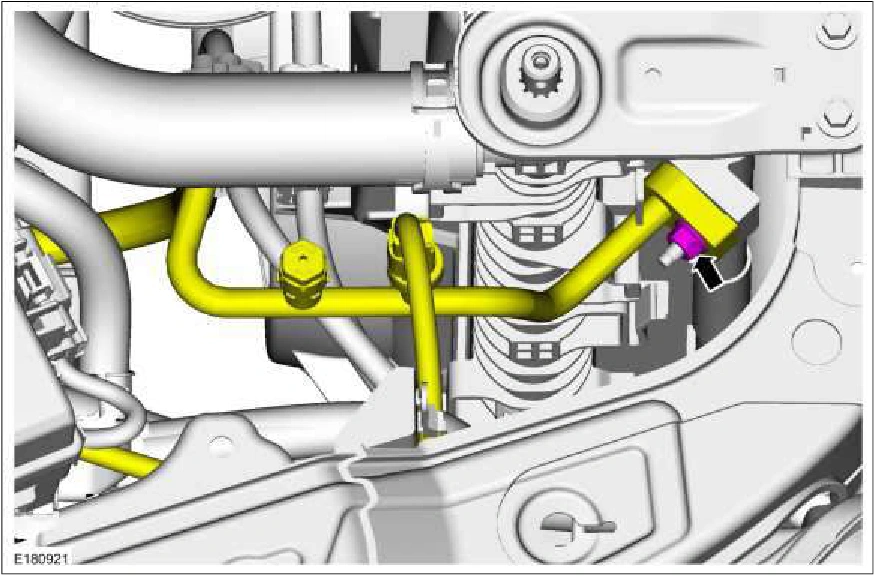

Condenser - 5.2L 32V Ti-VCT — original illustration 2, reference 3747Original colors & callouts · Select to enlarge

8. Remove the air cleaner. Refer to: Air Cleaner (303-12D Intake Air Distribution and Filtering - 5.2L 32V Ti-VCT, Removal and Installation).

9. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe (303-12D Intake Air Distribution and Filtering - 5.2L 32V Ti-VCT, Removal and Installation).

10. Remove the bolts and position the degas bottle aside.
