Condenser - 5.2L 32V Ti-VCT — 2016 workshop reference 3746

Condenser - 5.2L 32V Ti-VCT — original illustration 1, reference 3746Original colors & callouts · Select to enlarge

5. NOTICE: Make sure that all openings are sealed.

Remove the nut and disconnect the A/C condenser outlet line. Torque : 80 lb.in (9 Nm)

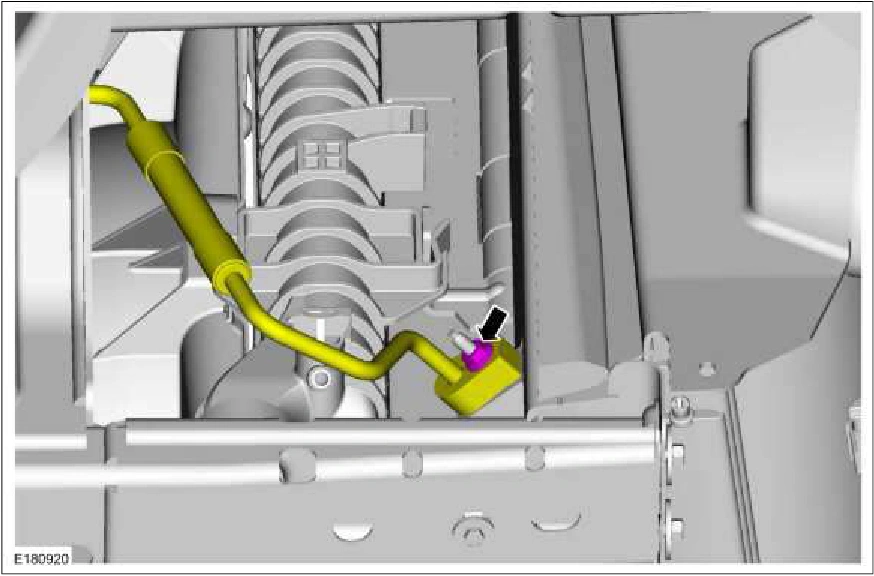

Condenser - 5.2L 32V Ti-VCT — original illustration 2, reference 3746Original colors & callouts · Select to enlarge

6. Remove the retainers and the radiator sight shield.

Source reference 3746
