Condenser - 5.2L 32V Ti-VCT — 2016 workshop reference 3748

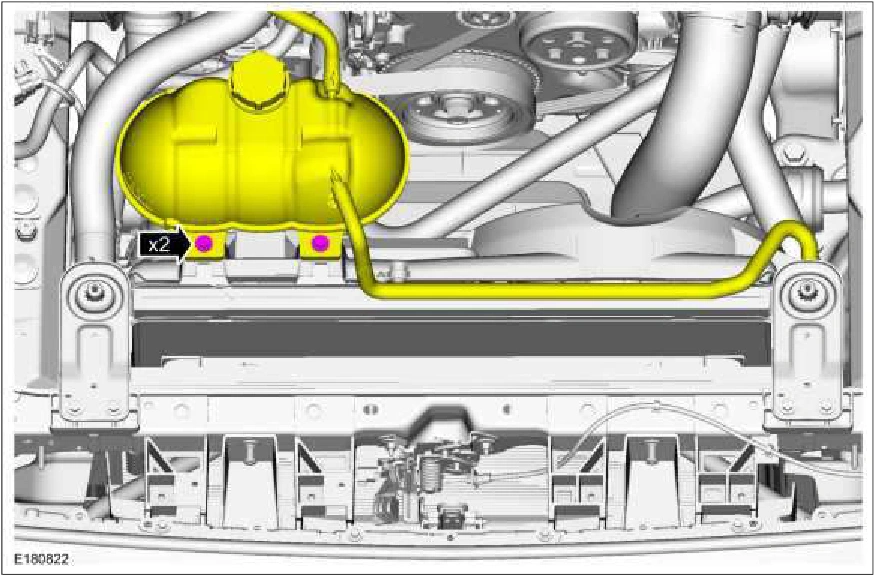

Torque : 80 lb.in (9 Nm)

Condenser - 5.2L 32V Ti-VCT — original illustration 1, reference 3748Original colors & callouts · Select to enlarge

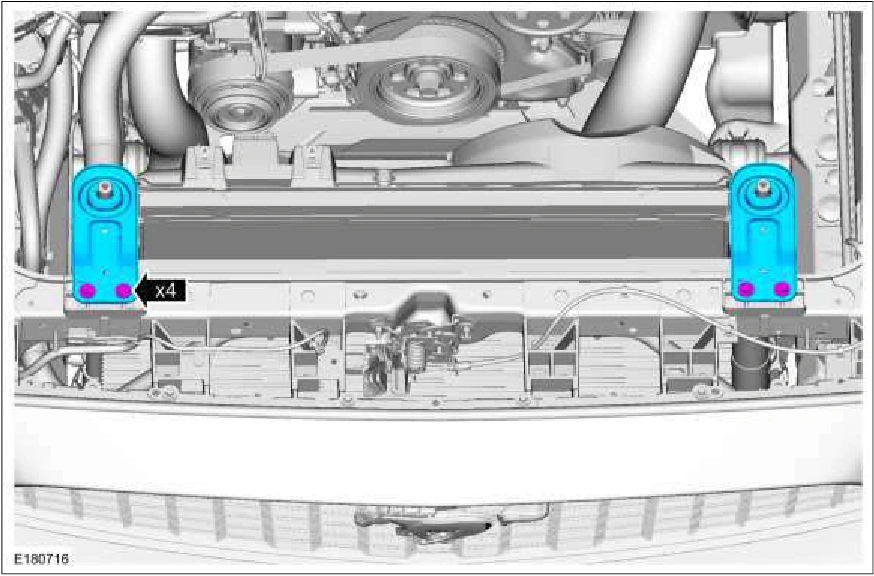

11. Remove the bolts and the upper radiator brackets. Torque : 97 lb.in (11 Nm)

Condenser - 5.2L 32V Ti-VCT — original illustration 2, reference 3748Original colors & callouts · Select to enlarge

12. NOTE: Front bumper removed for clarity.

1. Lift the radiator off the lower radiator support and position the radiator, transmission fluid cooler assembly and cooling fan motor and shroud toward the engine.

2. Release the tabs and remove the condenser.

Source reference 3748
