412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 07/15/2015

Base Part Number: S018B08

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

1. Remove the instrument panel center finish panel. Refer to: Instrument Panel Center Finish Panel (501-12 Instrument Panel and Console, Removal and Installation).

2. Release the clips and remove the LH instrument panel trim panel. Use the General Equipment: Interior Trim Remover

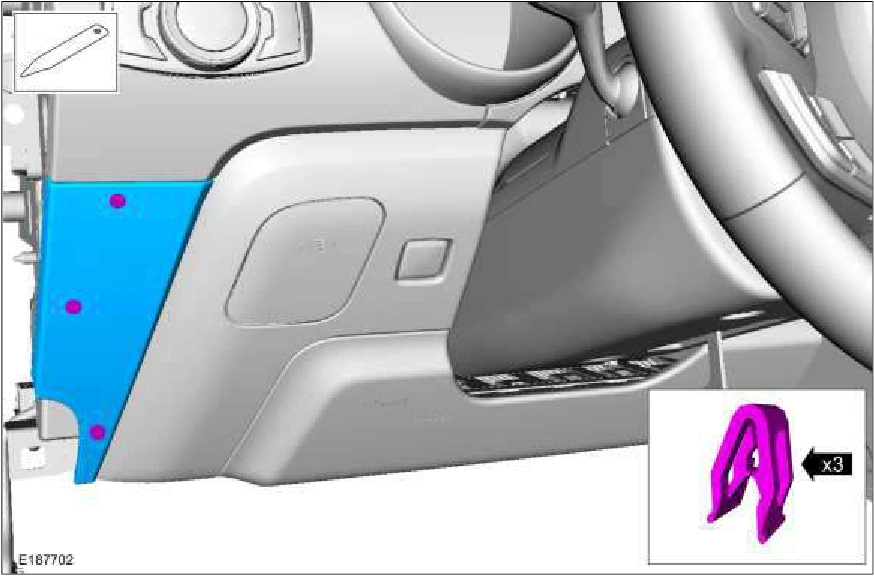

Driver Side Register — original illustration 1, reference 3775Original colors & callouts · Select to enlarge

3. Remove the bolt, release the clips and remove the lighting switch trim panel. Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover Torque : 27 lb.in (3 Nm)

Source reference 3775
