Driver Side Register — 2016 workshop reference 3776

Driver Side Register — original illustration 1, reference 3776Original colors & callouts · Select to enlarge

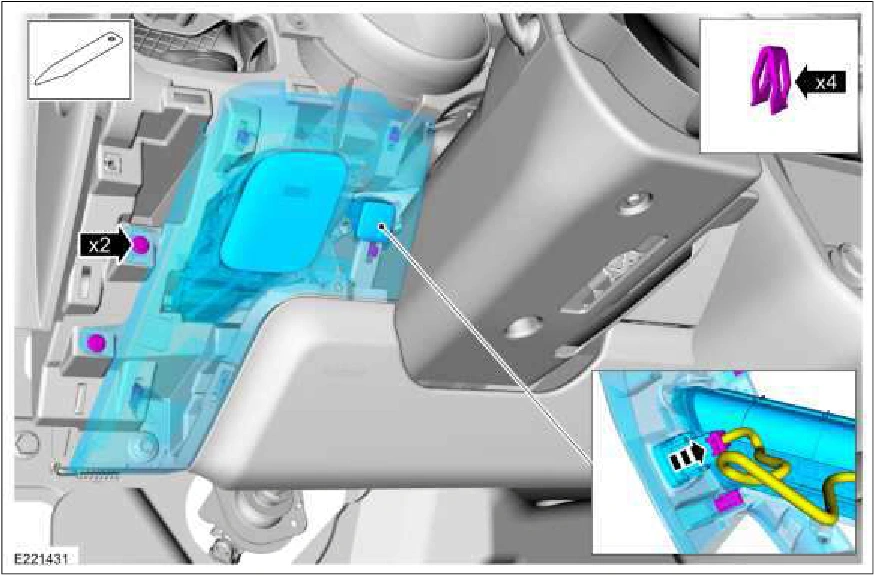

4. Remove the bolts, release the clips and remove the LH finish panel. Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover Torque : 27 lb.in (3 Nm)

Driver Side Register — original illustration 2, reference 3776Original colors & callouts · Select to enlarge

5. Release the clips and position aside the lower instrument panel cover. Use the General Equipment: Interior Trim Remover

Source reference 3776
