Driver Side Temperature Door Actuator

412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 06/19/2015

Base Part Number: 19E616

Removal

NOTE: If possible, place the temperature door in the mid-position. This will unload the tension on the temperature door to ease replacement of the actuator.

1. NOTE: Do not apply power to the actuator while disconnected from the temperature door shaft.

Disconnect the driver side temperature door actuator connector, remove the retainers and the driver side temperature door actuator.

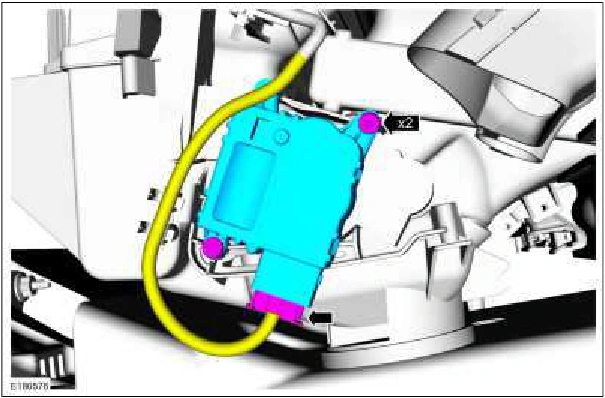

Driver Side Temperature Door Actuator — original illustration 1, reference 3779Original colors & callouts · Select to enlarge

Installation

1. Inspect and align the timing marks prior to installation of the driver side temperature door actuator.

Source reference 3779
