Driver Side Register — 2016 workshop reference 3777

Driver Side Register — original illustration 1, reference 3777Original colors & callouts · Select to enlarge

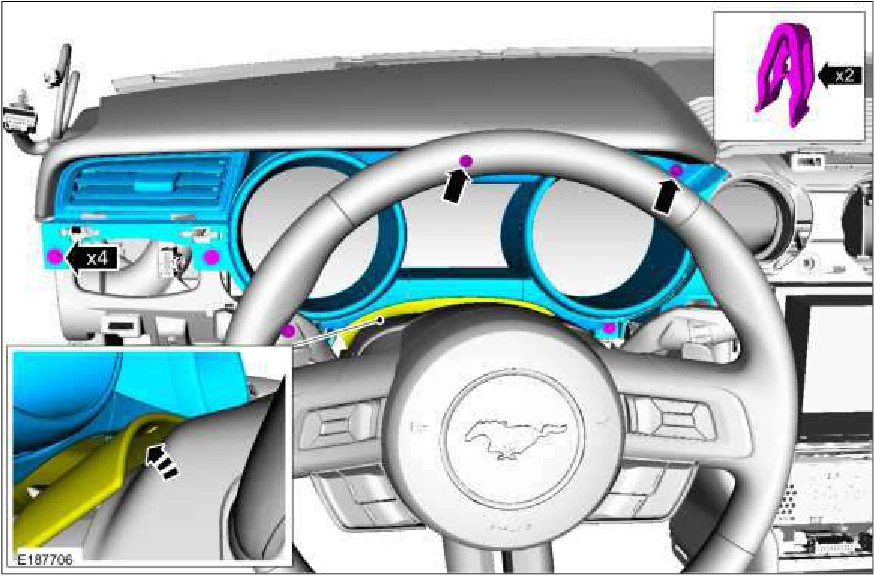

6. Remove the bolts, release the clips and remove the IPC trim panel. Detach the gap hider from the upper steering column trim cover. Torque : 27 lb.in (3 Nm)

Driver Side Register — original illustration 2, reference 3777Original colors & callouts · Select to enlarge

7. Release the clips and remove the driver side register assembly.

Source reference 3777

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
