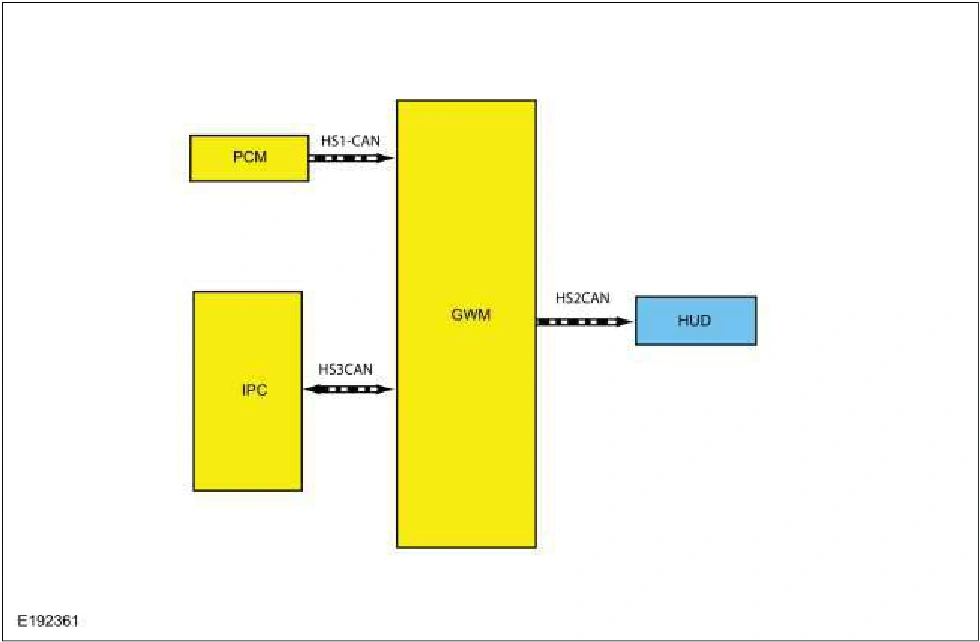

Network Message Chart - HUD (SVT Only)
Module Network Input Messages - HUD
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
HUD display intensity | IPC | Input used to display the performance shift indication intensity. |
HUD mode | IPC | Input used to display the performance shift indication mode. |
HUD shift point | IPC | Input used to turn on the performance shift indication at the driver selected shift points. |
Module Network Input Messages - IPC
Broadcast Message Originating Module | Message Purpose | |
|---|---|---|
Engine RPM data | PCM | Input used to provide RPM data for the performance shift indication. |
HUD - Performance Shift Indication
The HUD provides the performance shift indication to the driver. The performance shift mode, shift points and display intensity are selected by the driver through the message center. The IPC provides the driver selections to the HUD and provides a shift indicator chime tone to correspond with the indication displayed by the HUD. The driver selected HUD modes are as follows:
Drag Tach Track Off
