Charging System - System Operation and Component Description
System Operation

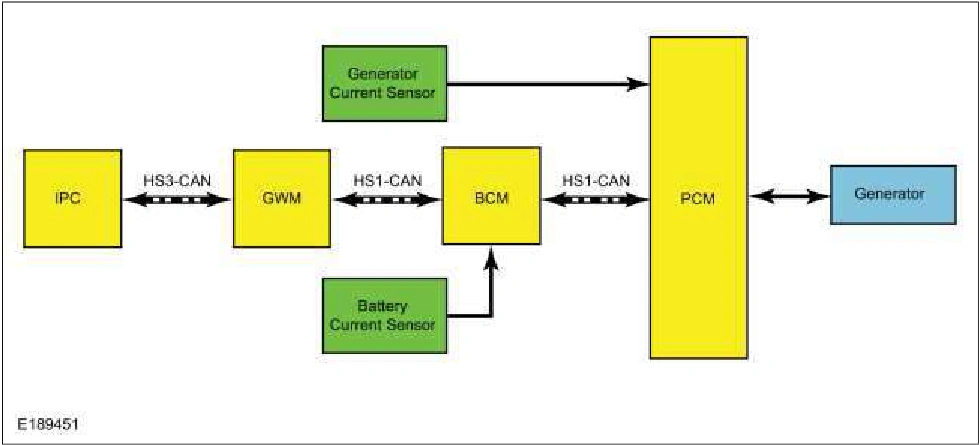

System Diagram
Network Message Chart
Module Network Input Messages — Body Control Module (BCM)
Broadcast Message Originating Module | Message Purpose | |
|---|---|---|
Alternator fault | PCM | The PCM has detected a fault in the generator or generator circuits. |
Module Network Input Messages — Instrument Panel Cluster (IPC)
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Power system status | BCM | Reports any generator/charging system faults. Used for charging system fault indicator. |
Load Shed Request | BCM | Used to indicate what level of load shed is commanded. |
Module Network Input Messages — Powertrain Control Module (PCM)
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Load Shed Request | BCM | Used to indicate what level of load shed is commanded. |
