Charging System - 5.0L 32V Ti-VCT — 2016 workshop reference 4032

A2 RETRIEVE THE PCM (POWERTRAIN CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

Ignition ON. Using a diagnostic scan tool, perform the PCM self-test.

Is DTC P0620, P0625 or P0626 present?

Yes	For DTC P0620, GO to Pinpoint Test F For Diagnostic Trouble Codes (DTCs) P0625 and P0626, GO to Pinpoint Test G
No	GO to A3

A3 COMPARE THE GENERATOR VOLTAGE DESIRED (GENVDSD) PID (PARAMETER IDENTIFICATION) WITH BATTERY VOLTAGE

With the engine running at idle, measure and record:

Positive Lead	Measurement / Action	Negative Lead

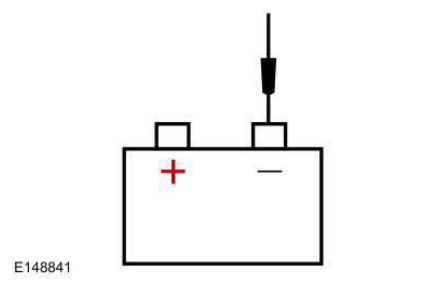

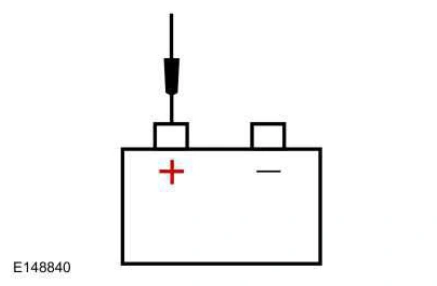

Charging System - 5.0L 32V Ti-VCT — original illustration 1, reference 4032Original colors & callouts · Select to enlarge		Charging System - 5.0L 32V Ti-VCT — original illustration 2, reference 4032Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

Charging System - 5.0L 32V Ti-VCT — original illustration 1, reference 4032Original colors & callouts · Select to enlarge

Charging System - 5.0L 32V Ti-VCT — original illustration 2, reference 4032Original colors & callouts · Select to enlarge

Using a diagnostic scan tool, view the PCM PID GENVDSD.

Is the recorded battery voltage within ±0.5 volt of the PID?

Yes	GO to A6
No	GO to A4

A4 MEASURE THE "A" SENSE VOLTAGE

Ignition OFF. Disconnect Generator C102B. Ignition ON. Measure and record:

Positive Lead	Measurement / Action	Negative Lead
Charging System - 5.0L 32V Ti-VCT — original illustration 3, reference 4032Original colors & callouts · Select to enlarge		Charging System - 5.0L 32V Ti-VCT — original illustration 4, reference 4032Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

Charging System - 5.0L 32V Ti-VCT — original illustration 3, reference 4032Original colors & callouts · Select to enlarge

Charging System - 5.0L 32V Ti-VCT — original illustration 4, reference 4032Original colors & callouts · Select to enlarge

Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C102B-3		Ground

Is the "A" sense voltage equal to the recorded battery voltage?
