Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C102B-1 | C102B-2 |
Start the engine. Using a diagnostic scan tool, view PCM Parameter Identifications (PIDs). Using the active command, set the PID GENVDSD to 14 volts. Monitor the PCM Parameter Identifications (PIDs) GENMON and GENVDSD.
Do the Parameter Identifications (PIDs) read within 5% of each other?
Yes | GO to A10 |
|---|---|
No | GO to A13 |
A10 COMPARE THE PCM (POWERTRAIN CONTROL MODULE) SUPPLY VOLTAGE (VPWR) PID (PARAMETER IDENTIFICATION) TO BATTERY VOLTAGE
With the engine running at idle, measure and record:

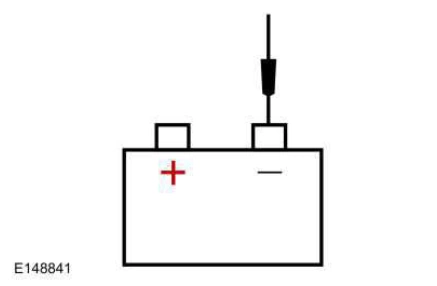

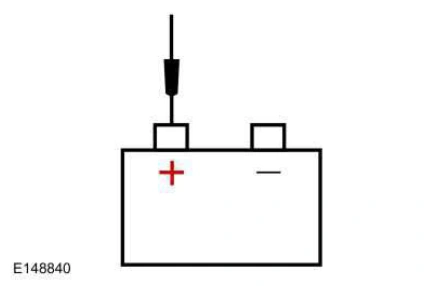

Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
Using a diagnostic scan tool, view PCM Parameter Identifications (PIDs). Monitor the PCM PID VPWR.
Does the PID accurately display battery voltage within ±0.5 volt of the recorded battery voltage?
Yes | The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. ADDRESS the root cause of any connector or pin issues. |
|---|---|
No | GO to A11 |
A11 CHECK PCM (POWERTRAIN CONTROL MODULE) SUPPLY VOLTAGE CIRCUITS
Ignition OFF. Disconnect BJB PCM power relay. Disconnect PCM C175B. Connect a fused jumper wire:
Positive Lead | Measurement / Action | Negative Lead |
|---|
