Yes | GO to A5 |
|---|---|
No | VERIFY the BJB fuse 36 (10A) is OK. If OK, REPAIR the circuit. If not OK, REFER to the Wiring Diagrams manual to identify the possible causes of the circuit short. |
A5 "A" SENSE CIRCUIT LOAD TEST
NOTICE: The following step uses a test light to simulate normal circuit loads. Use only the test light recommended in the Special Tools table at the beginning of this section. To avoid connector terminal damage, use the Flex Probe Kit for the test light probe connection to the vehicle. Do not use the test light probe directly on any connector.

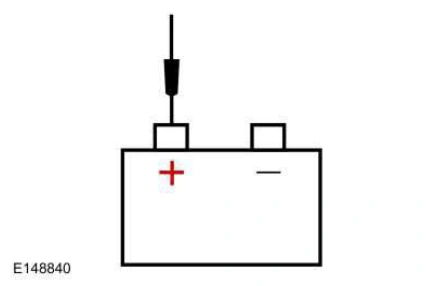

NOTE: This step puts a load on the "A" sense circuit. If there are corroded or loose connections, loading the circuit may help show the fault. A 250-350 mA incandescent 12-volt test lamp is required for this step. This circuit cannot be loaded correctly using an LED-style test lamp. Ignition ON. Measure and record:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
Connect the load to each circuit and measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C102B-3 | Ground |
Is the "A" sense voltage within ±0.5 volt of the recorded battery voltage?
Yes | GO to A6 |
|---|---|
No | VERIFY the BJB fuse 36 (10A) is OK. If OK, REPAIR the circuit. If not OK, REFER to the Wiring Diagrams manual to identify the possible causes of the circuit short. |
A6 CHECK FOR INTERMITTENT IN THE REGULATOR CIRCUIT
Connect Generator C102B. Start the engine. With the engine running at idle, headlamps on and heater blower on high, measure:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
Perform a wiggle test on the generator wiring and following connections while measuring voltage:
