2016 workshop · Battery and Charging System

Battery Disconnect and Connect

414-01 Battery, Mounting and Cables

2016 MustangReference 4,067 / 6,619HTML edition
← Chapter contentsProcedure contents

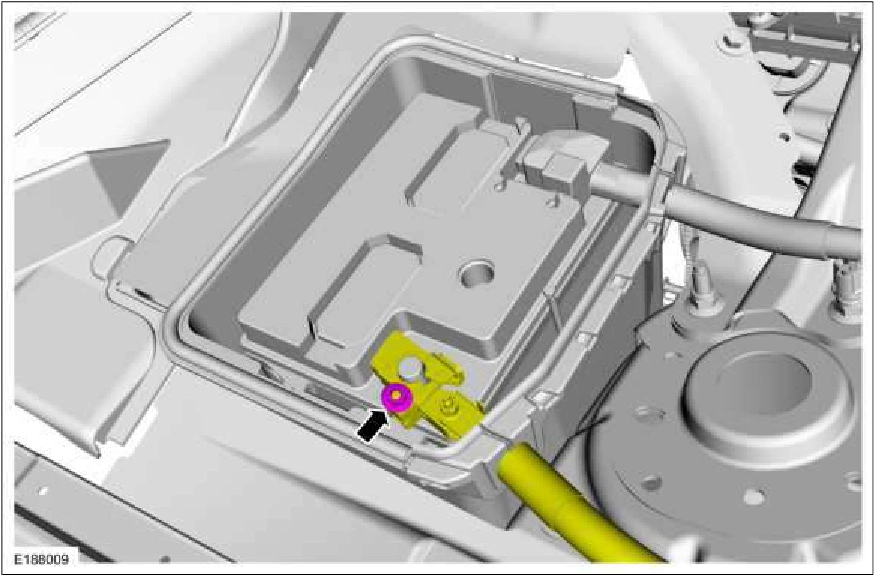

Battery Disconnect and Connect — original illustration 1, reference 4067Original colors & callouts · Select to enlarge

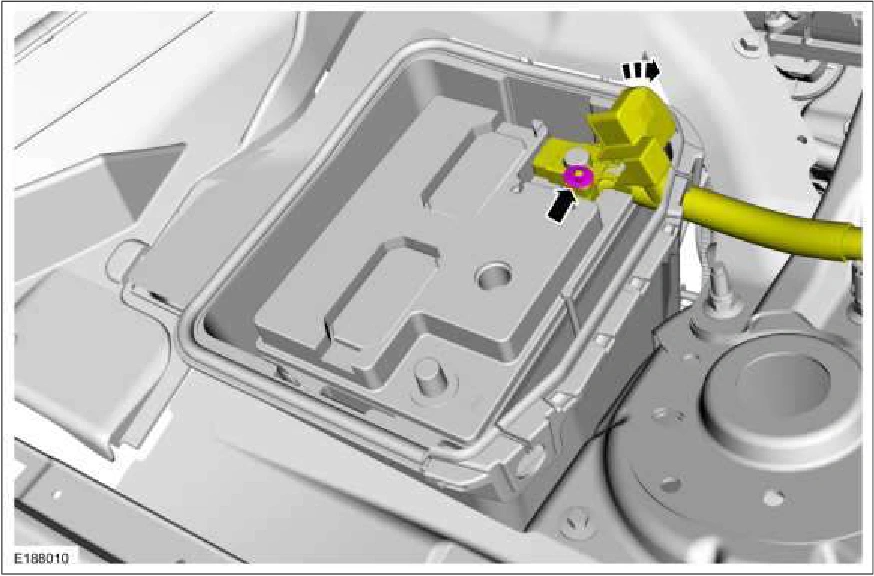

3. Position the positive battery cable cover, loosen the nut and position the positive battery cable. Torque : 44 lb.in (5 Nm)

Battery Disconnect and Connect — original illustration 2, reference 4067Original colors & callouts · Select to enlarge

Connect

1. To connect, reverse the disconnect procedure.
