414-01 Battery, Mounting and Cables 2016 Mustang

Removal and Installation Procedure revision date: 01/16/2015

Base Part Number: 10655

Removal

1. Disconnect the battery. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Loosen and remove the battery hold-down bolt and clamp. Remove the battery. Torque : 71 lb.in (8 Nm)

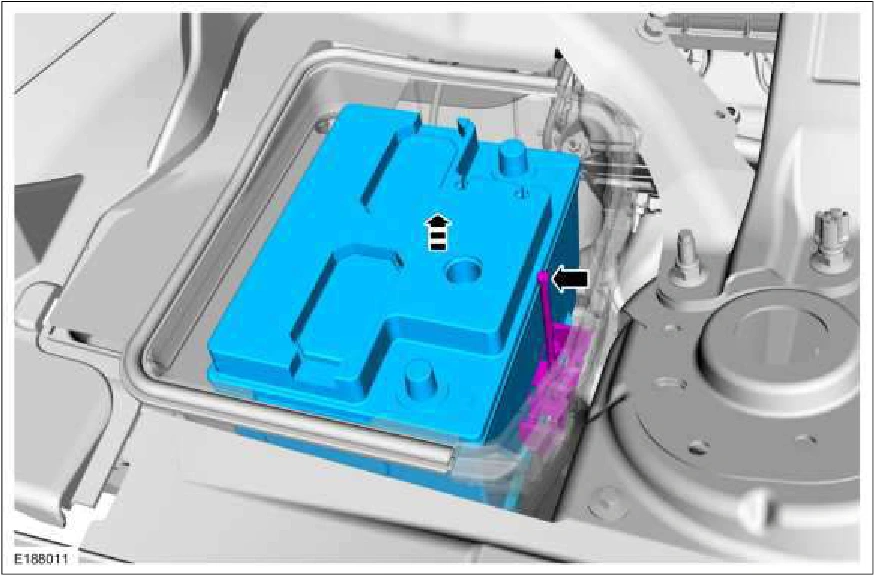

Battery — original illustration 1, reference 4070Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. If installing a new battery, use the scan tool to carry out the Battery Monitoring System (BMS) reset after the battery is connected.

Source reference 4070
