Battery Cables - 5.0L 32V Ti-VCT
Base Part Number: 14B060
Removal
NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.
1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
2. Disconnect the battery. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

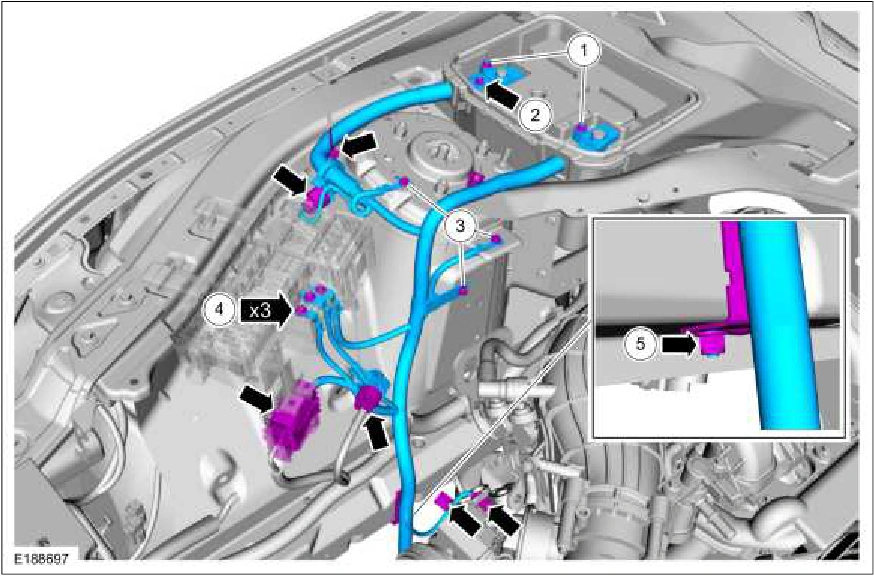

Step 3
1. Torque : 44 lb.in (5 Nm)
2. Torque : 80 lb.in (9 Nm)
3. Torque : 106 lb.in (12 Nm)
4. Torque : 89 lb.in (10 Nm)
5. Torque : 89 lb.in (10 Nm)
4. Torque : 115 lb.in (13 Nm)
