Battery Cables - 5.0L 32V Ti-VCT — 2016 workshop reference 4072

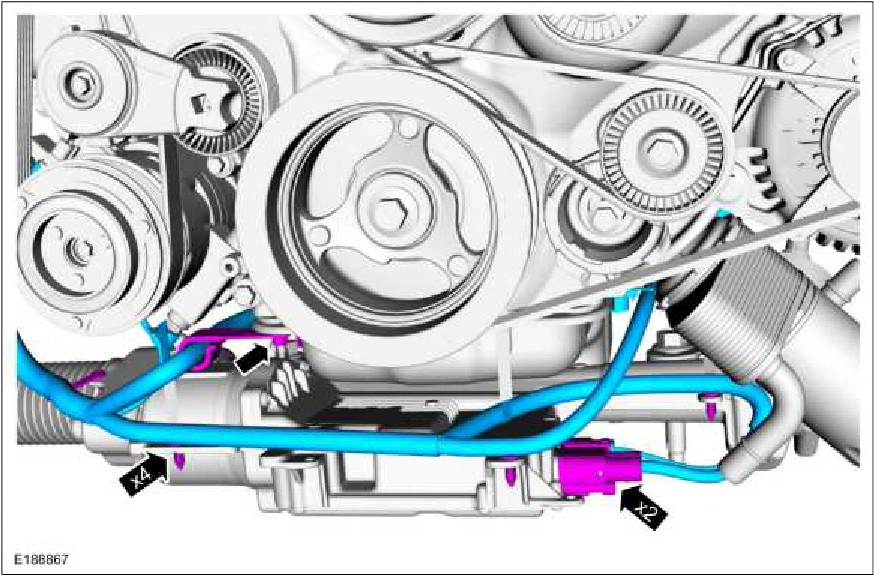

Battery Cables - 5.0L 32V Ti-VCT — original illustration 1, reference 4072Original colors & callouts · Select to enlarge

5. Torque : 150 lb.in (17 Nm)

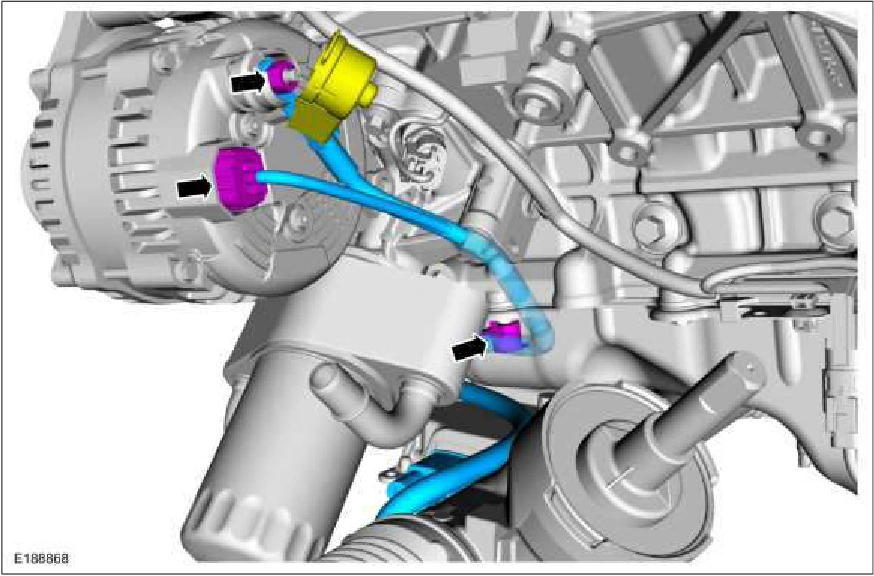

Battery Cables - 5.0L 32V Ti-VCT — original illustration 2, reference 4072Original colors & callouts · Select to enlarge

NOTE: Vehicle with manual transmission shown, automatic transmission similar.

Step 6

1. If equipped with a manual transmission.

2. Torque : 53 lb.in (6 Nm)

3. Torque : 106 lb.in (12 Nm)

4. Torque : 35 lb.ft (47 Nm)

Source reference 4072
