Battery Current Sensor

414-01 Battery, Mounting and Cables 2016 Mustang

Removal and Installation Procedure revision date: 08/18/2015

Removal

1. Remove the retainers and the battery cover.

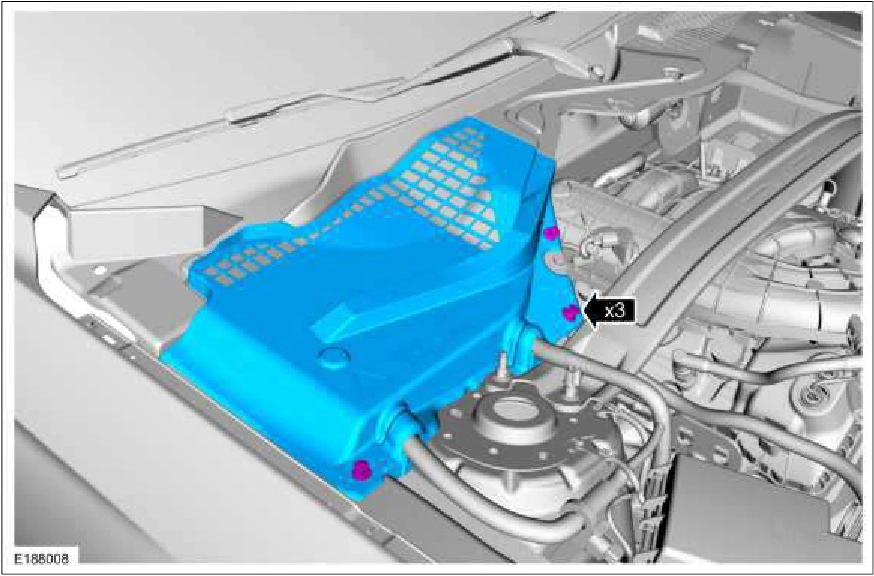

Battery Current Sensor — original illustration 1, reference 4075Original colors & callouts · Select to enlarge

2. NOTE: Note the orientation and position of the battery current sensor tape tab.

Remove the nut, disconnect the battery cable retainer and position the battery cable. Disconnect the battery current sensor electrical connector. Index-mark the battery cable at the battery current sensor. Remove and discard the tape securing the battery current sensor to the battery cable and remove the battery current sensor.

Source reference 4075
