414-01 Battery, Mounting and Cables 2016 Mustang

Removal and Installation Procedure revision date: 01/16/2015

Battery Tray

Base Part Number: 10732

Removal

1. Remove the battery. Refer to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).

2. Remove the bolts and the battery tray. Torque : 89 lb.in (10 Nm)

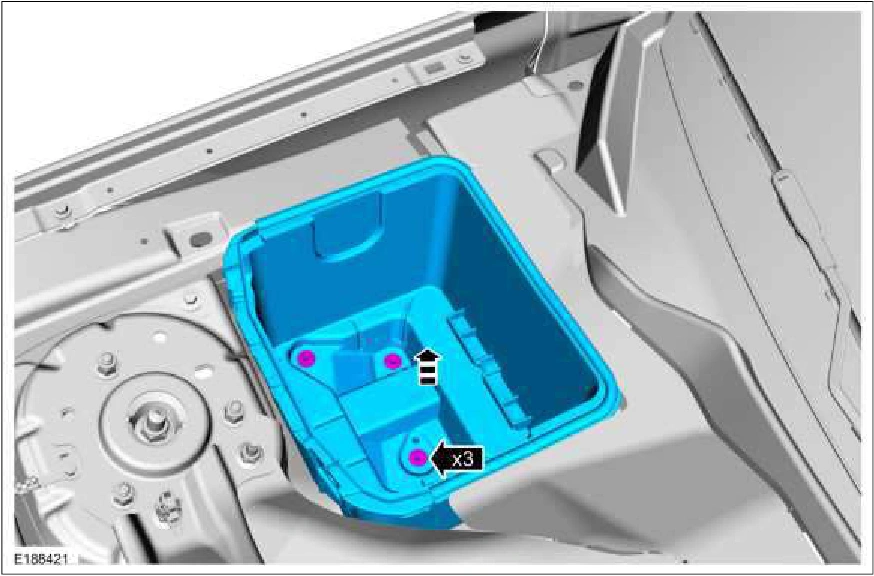

Battery Tray — original illustration 1, reference 4078Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
