414-01 Battery, Mounting and Cables 2016 Mustang

Removal and Installation Procedure revision date: 08/18/2015

Generator Current Sensor

Removal

1. Disconnect the battery. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Release the retainer and remove the BJB cover.

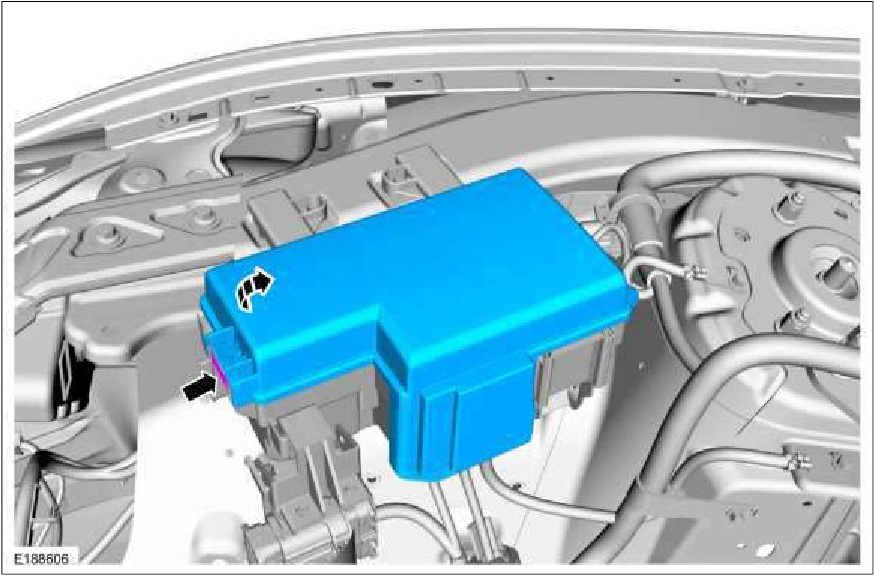

Generator Current Sensor — original illustration 1, reference 4079Original colors & callouts · Select to enlarge

3. NOTE: Note the orientation and position of the generator current sensor tape tab.

Remove the nut and position the battery cable. Disconnect the generator current sensor electrical connector. Index-mark the battery cable at the generator current sensor. Remove and discard the tape securing the generator current sensor to the battery cable and remove the generator current sensor.

Source reference 4079
