Installation

1. NOTE: The generator current sensor must be installed in the proper position and orientation to function correctly.

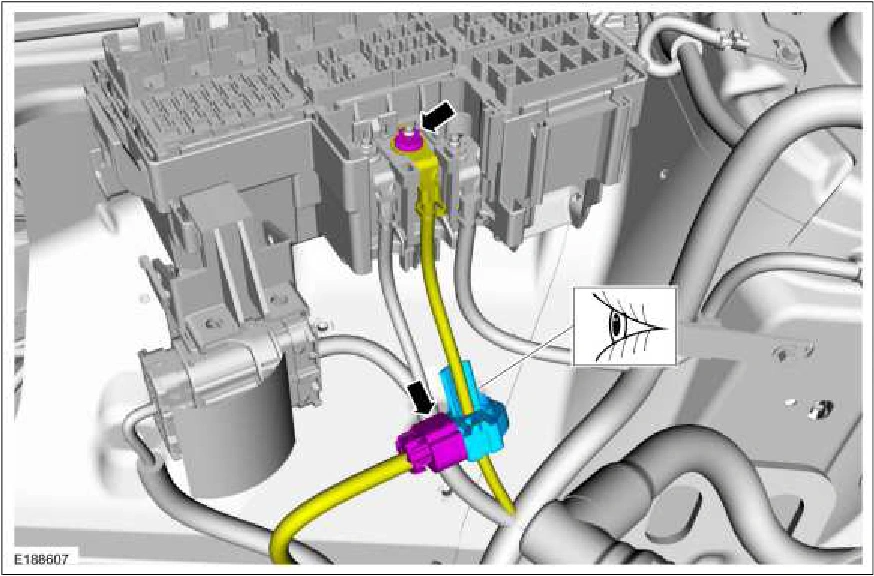

With the generator current sensor tape tab pointing away from the generator, position the generator current sensor to the index-mark on the battery cable and secure with electrical tape. Connect the generator current sensor electrical connector. Position the battery cable and install the nut. Torque : 89 lb.in (10 Nm)

Generator Current Sensor — original illustration 2, reference 4080Original colors & callouts · Select to enlarge

2. Install the BJB cover.
