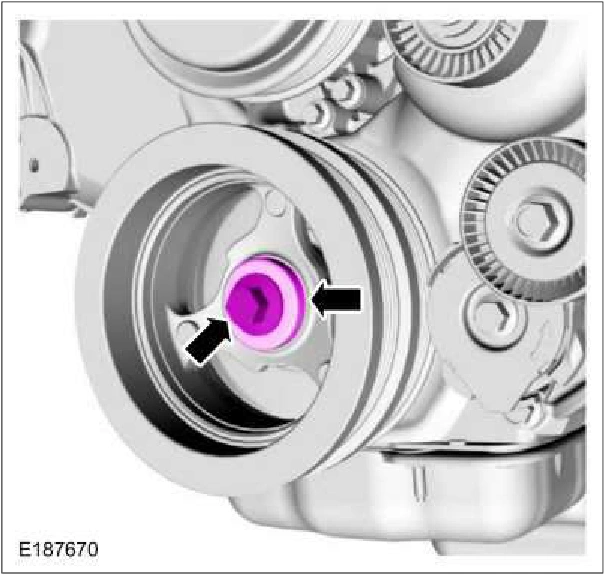

36. Remove the crankshaft pulley bolt and washer.

Engine — original illustration 1, reference 427Original colors & callouts · Select to enlarge

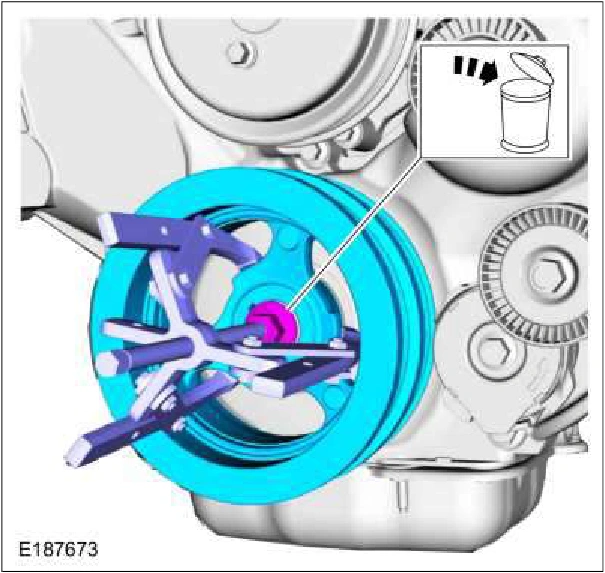

37. Using the 3 Leg Puller and the crankshaft pulley bolt, remove the crankshaft pulley.

Use the General Equipment: Three Leg Puller Discard the crankshaft pulley bolt.

Engine — original illustration 2, reference 427Original colors & callouts · Select to enlarge

38. NOTICE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
