Engine — 2016 workshop reference 426

Material : Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

Engine — original illustration 1, reference 426Original colors & callouts · Select to enlarge

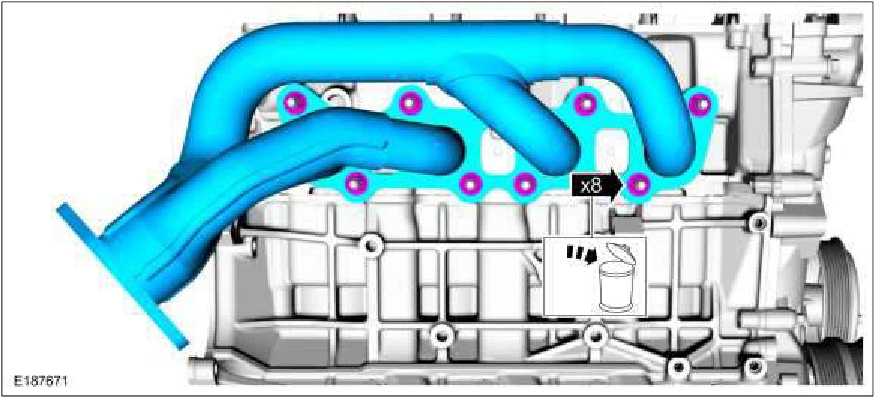

34. Remove and discard the nuts.

Remove the exhaust manifold. Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection (303-00 Engine System - General Information, General Procedures).

Engine — original illustration 2, reference 426Original colors & callouts · Select to enlarge

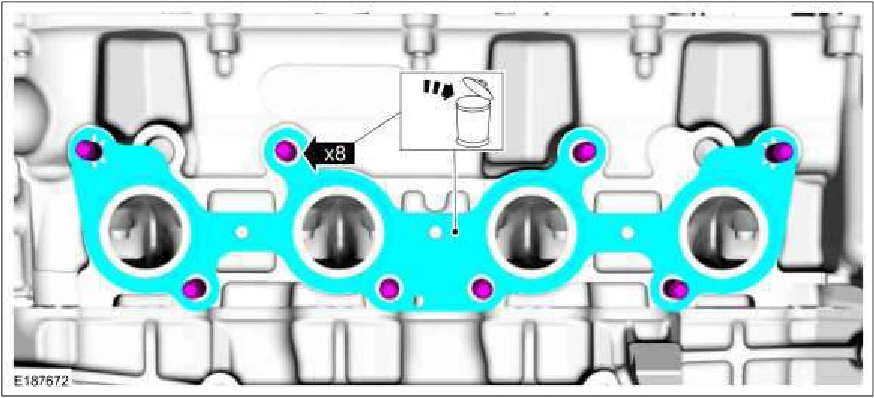

35. Remove and discard the gasket and studs.

Engine — original illustration 3, reference 426Original colors & callouts · Select to enlarge
