Material : Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

Engine — original illustration 1, reference 423Original colors & callouts · Select to enlarge

Step 28

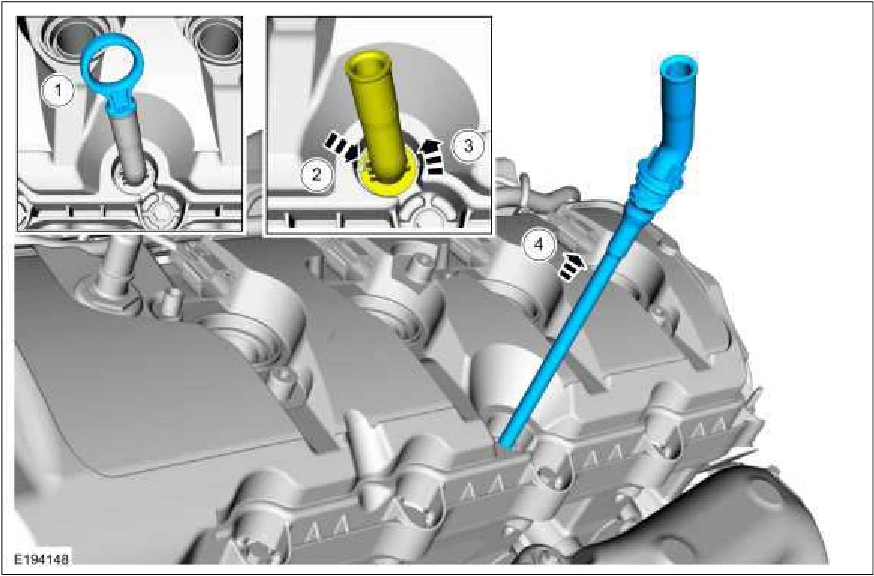

1. Remove the oil level indicator.

2. Depress the tab.

3. Rotate the oil level indicator tube counterclockwise.

4. Pull the oil level indicator tube from the engine.

Engine — original illustration 2, reference 423Original colors & callouts · Select to enlarge

29. Loosen the bolts and remove the LH valve cover.

Source reference 423
