Engine — 2016 workshop reference 420

Engine — original illustration 1, reference 420Original colors & callouts · Select to enlarge

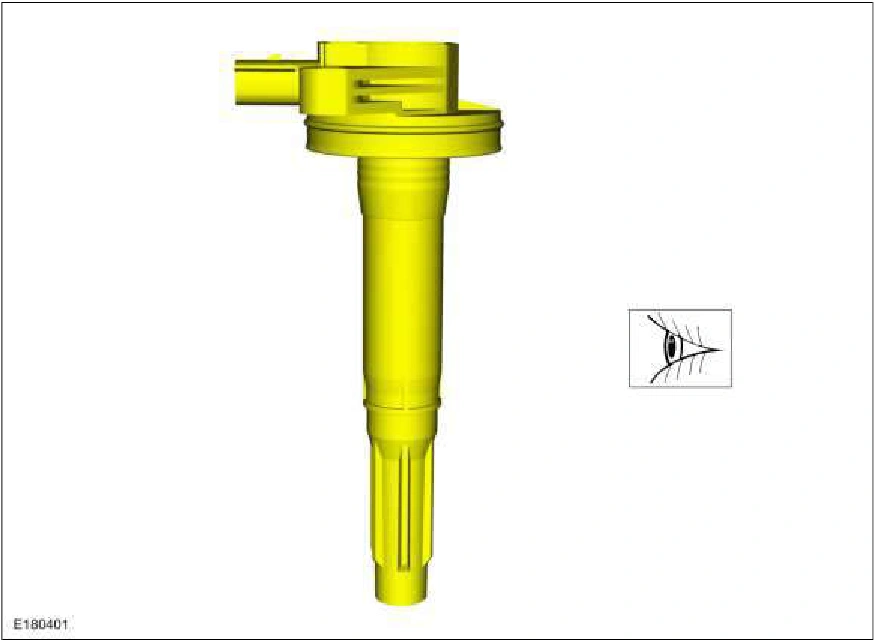

22. Inspect the ignition coil-on-plug assembly for cracks, rips, or tears. Replace any damaged coil-on-plug assemblies.

Engine — original illustration 2, reference 420Original colors & callouts · Select to enlarge

23. Loosen the bolts and remove the RH valve cover.
