Engine — 2016 workshop reference 418

Engine — original illustration 1, reference 418Original colors & callouts · Select to enlarge

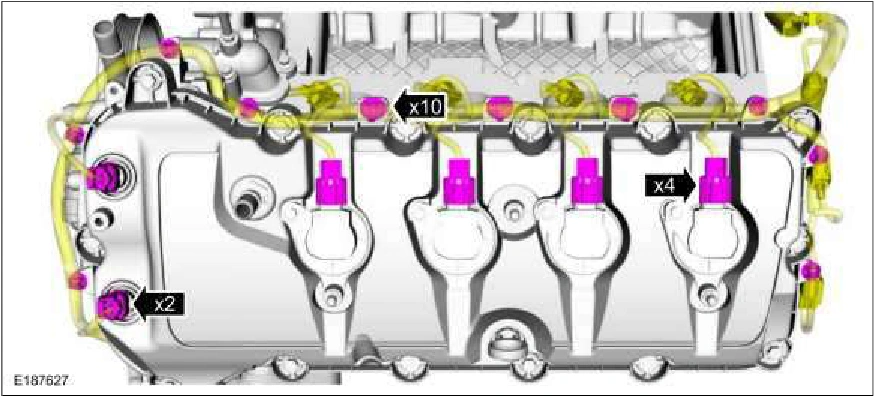

18. Disconnect the wiring harness electrical connectors and retainers.

Engine — original illustration 2, reference 418Original colors & callouts · Select to enlarge

19. Detach the wiring harness retainer from the engine front cover stud bolt.

Source reference 418

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
