303-01C Engine - 5.0L

2016 Mustang5.0LReference 417 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 417Original colors & callouts · Select to enlarge

16. NOTE: Engine equipped with automatic transmission shown, manual transmission engine similar.

Disconnect the wiring harness electrical connectors and retainers.

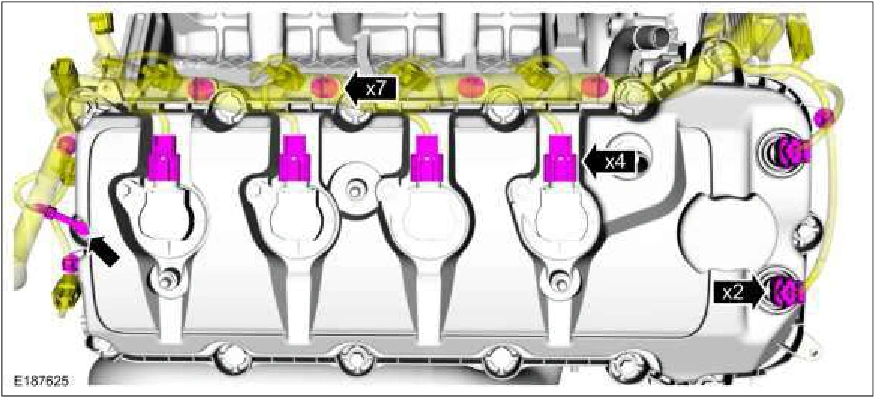

Engine — original illustration 2, reference 417Original colors & callouts · Select to enlarge

17. Remove the crankcase ventilation tube.

Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures). Remove the LH spark plug cover.
