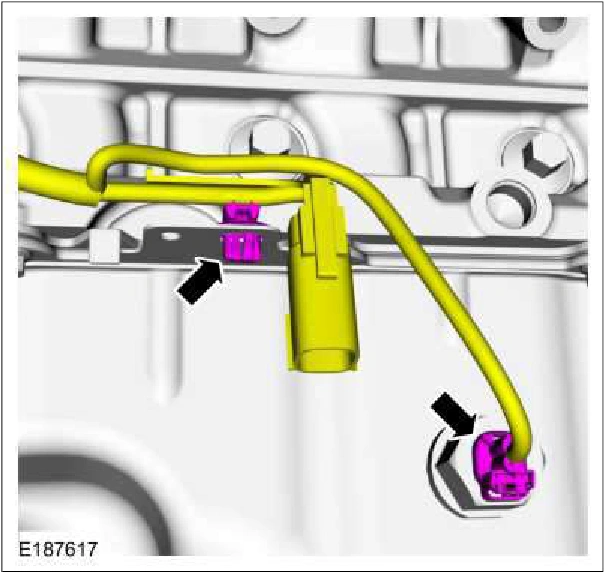

9. Disconnect the engine oil level sensor electrical connector and the wiring harness retainer.

Engine — original illustration 1, reference 414Original colors & callouts · Select to enlarge

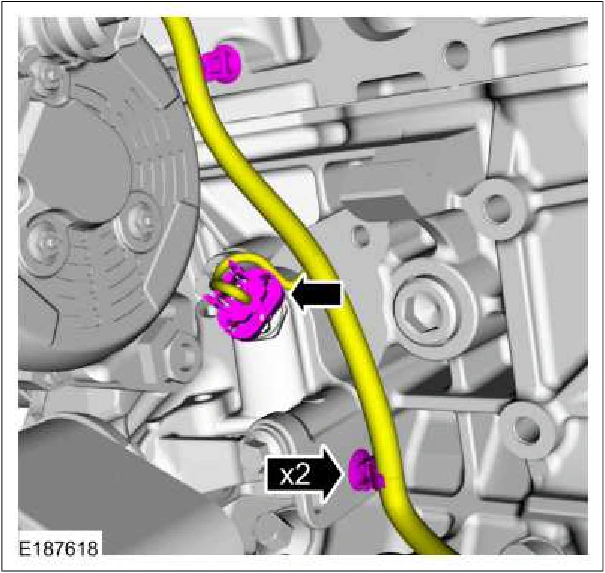

10. Disconnect the EOP ) switch electrical connector and the wiring harness retainers.

Engine — original illustration 2, reference 414Original colors & callouts · Select to enlarge

11. Disconnect the LH camshaft position sensor electrical connectors.

Remove the bolt and the ground wire. Remove the bolts and the LH camshaft position sensors.

Source reference 414
