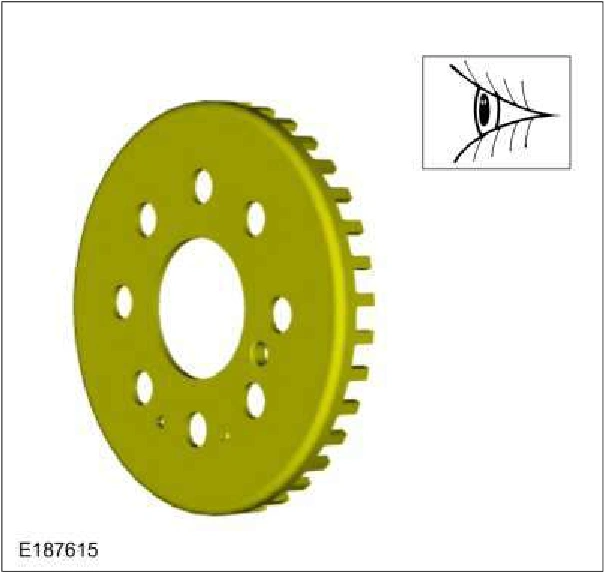

Engine — original illustration 1, reference 412Original colors & callouts · Select to enlarge

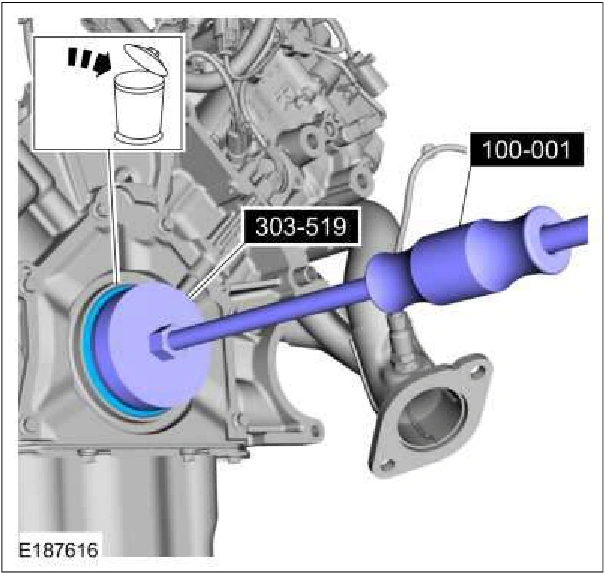

6. Using the special tools, remove and discard the crankshaft rear seal. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer. , 303-519 (T95P-6701-EH) Remover, Crankshaft Rear Oil Seal.

Engine — original illustration 2, reference 412Original colors & callouts · Select to enlarge

7. Using a floor crane, install the engine on a mounting stand and remove the special tool. Remove Special Service Tool: 303-F047 Lifting Bracket, Engine. Use the General Equipment: Floor Crane Use the General Equipment: Mounting Stand
