2016 workshop · Engine

Engine

303-01C Engine - 5.0L

2016 Mustang5.0LReference 411 / 6,619HTML edition
← Chapter contentsProcedure contents

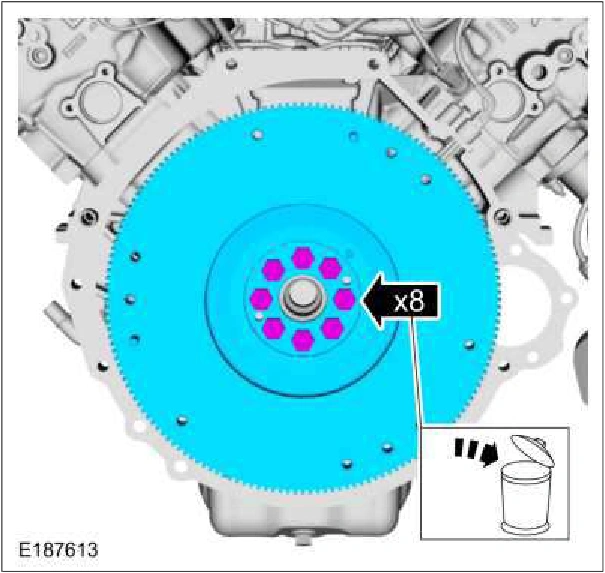

Engine — original illustration 1, reference 411Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

4. NOTE: Engine equipped with manual transmission shown, automatic transmission engine similar.

Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.

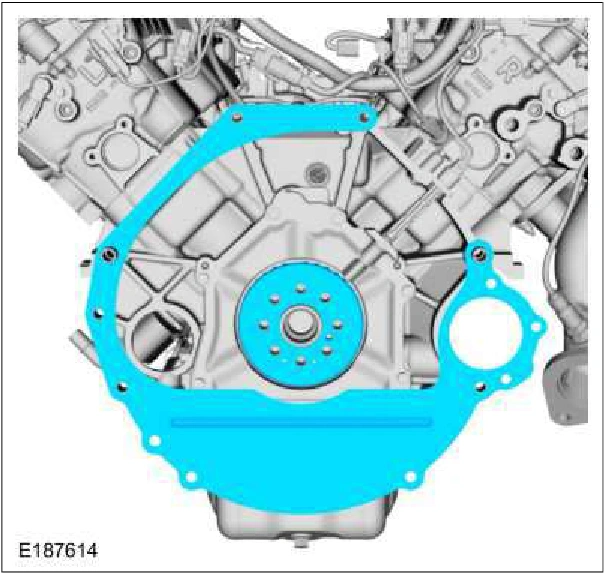

Engine — original illustration 2, reference 411Original colors & callouts · Select to enlarge

5. Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be replaced.

Source reference 411
