Materials
Name | Specification |
|---|---|
Motorcraft® Silicone Gasket Remover ZC-30-A | - |
Motorcraft® Metal Surface Prep ZC-31-B | - |
Metal Brake Parts Cleaner (U.S.) PM-4-A, PM-4-B (U.S.) | - |
NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTICE: Remove the cylinder heads before removing the crankshaft. Failure to do so can result in engine damage.
NOTE: If the components are to be reinstalled, they must be installed in their original location. Mark the components for installation into their original location.
6-Speed Automatic Transmission - 6R80

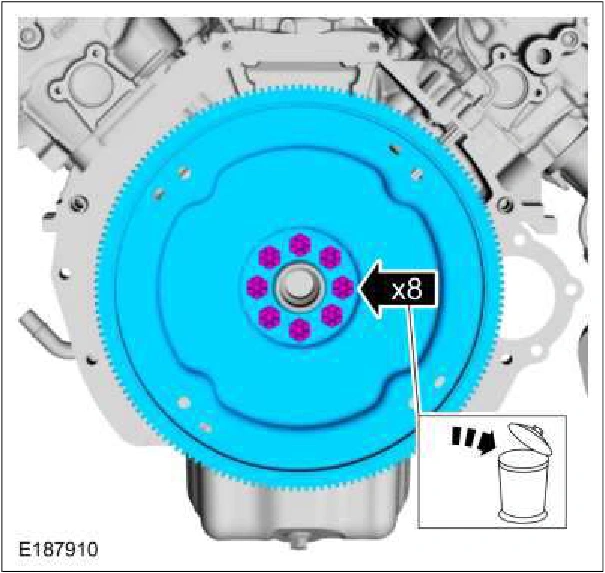

1. NOTE: The flexplate bolts are torque-to-yield design and are not reusable
Remove and discard the flexplate bolts.
Remove the flexplate.
6-Speed Manual Transmission - MT82
2. WARNING: Do not breathe dust or use compressed air to blow dust from storage containers or
friction components. Remove dust using government-approved techniques. Friction component dust may be a cancer and lung disease hazard. Exposure to potentially hazardous components
