Engine — 2016 workshop reference 406

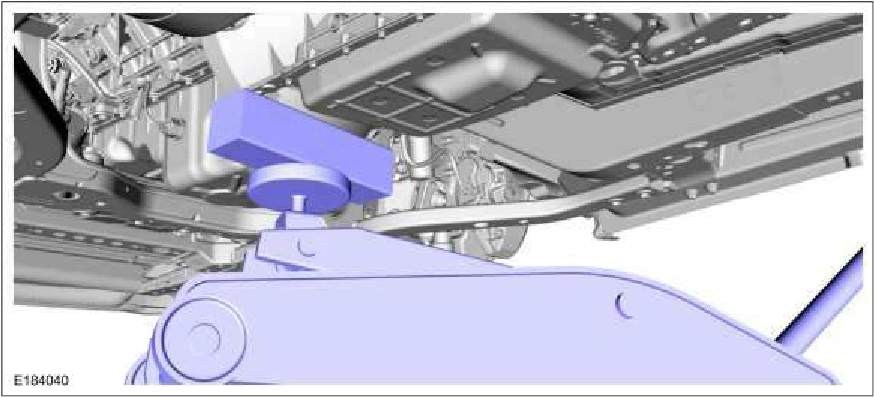

Engine — original illustration 1, reference 406Original colors & callouts · Select to enlarge

Step 58

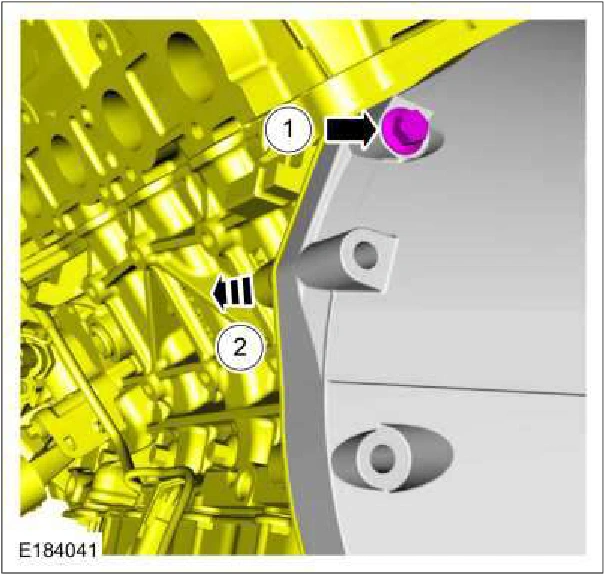

1. Remove the remaining transmission-to-engine bolt.

2. Separate the engine from the transmission.

Engine — original illustration 2, reference 406Original colors & callouts · Select to enlarge

59. Using the Floor Crane lift the engine from the vehicle. Use the General Equipment: Floor Crane

Source reference 406
