Engine — 2016 workshop reference 405

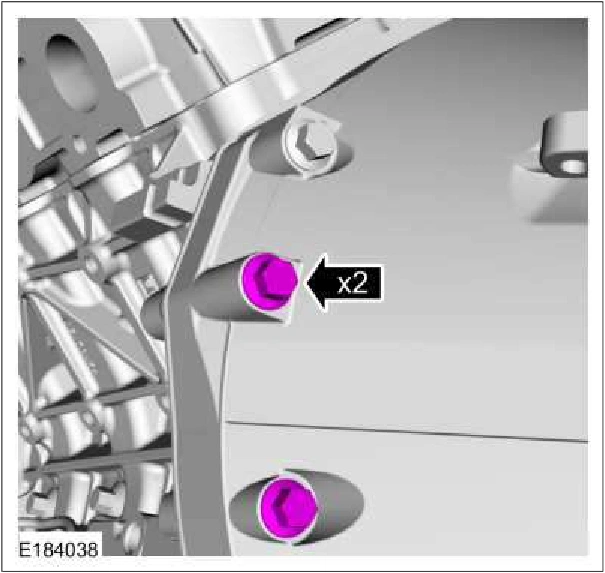

Engine — original illustration 1, reference 405Original colors & callouts · Select to enlarge

Step 56

1. Attach the Floor Crane to the Engine Lifting Bracket

Use the General Equipment: Floor Crane

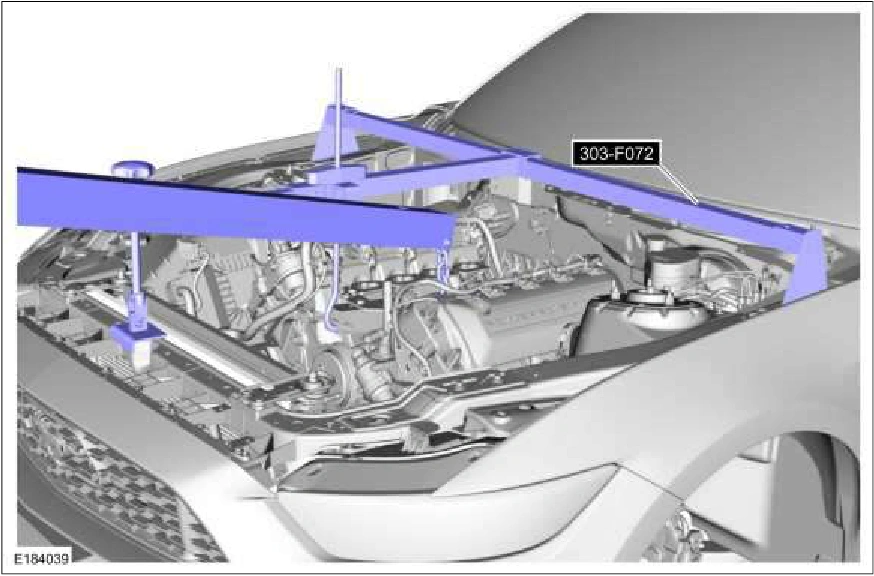

2. Once the engine is supported by the Floor Crane, remove the special tools. Use Special Service Tool: 303-F072 Support Bar, Engine.

Engine — original illustration 2, reference 405Original colors & callouts · Select to enlarge

57. NOTICE: Do not support the transmission by the fluid pan, failure to follow this instruction may

result in serious damage to the transmission.

Install a jack and wooden block under the transmission bell housing to support the transmission. Use the General Equipment: Wooden Block Use the General Equipment: Trolley Jack
