Engine — 2016 workshop reference 403

Engine — original illustration 1, reference 403Original colors & callouts · Select to enlarge

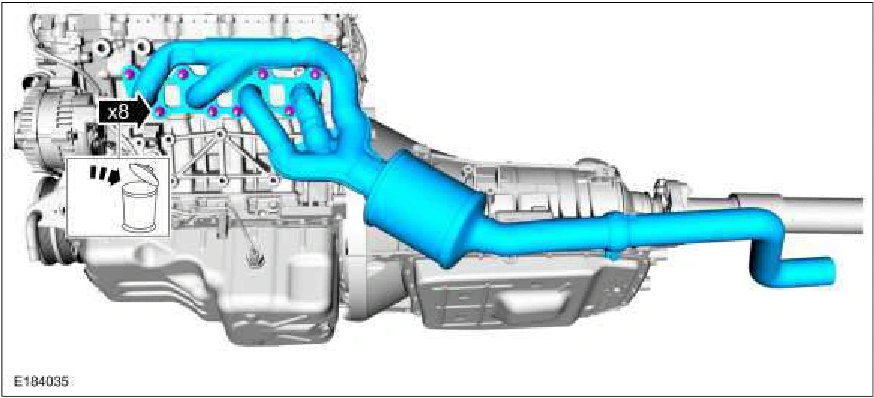

52. Remove and discard the nuts.

Remove the LH catalytic converter.

Engine — original illustration 2, reference 403Original colors & callouts · Select to enlarge

53. Remove and discard the gasket and studs.
