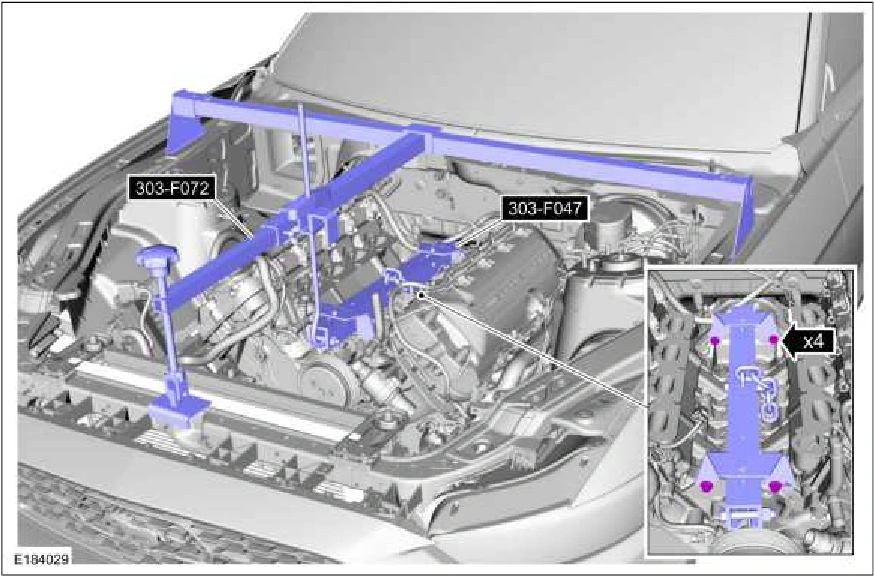

46. NOTICE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs

should be positioned on the body structure. Failure to follow these instructions may result in body damage.

Install the special tools and raise the engine 25 mm (1 inch). Use Special Service Tool: 303-F072 Support Bar, Engine. , 303-F047 Lifting Bracket, Engine.

Engine — original illustration 2, reference 400Original colors & callouts · Select to enlarge

47. Remove the nut and ground strap from the RH engine mount bracket stud bolt.
