2016 workshop · Engine

Engine

303-01C Engine - 5.0L

2016 Mustang5.0LReference 398 / 6,619HTML edition
← Chapter contentsProcedure contents

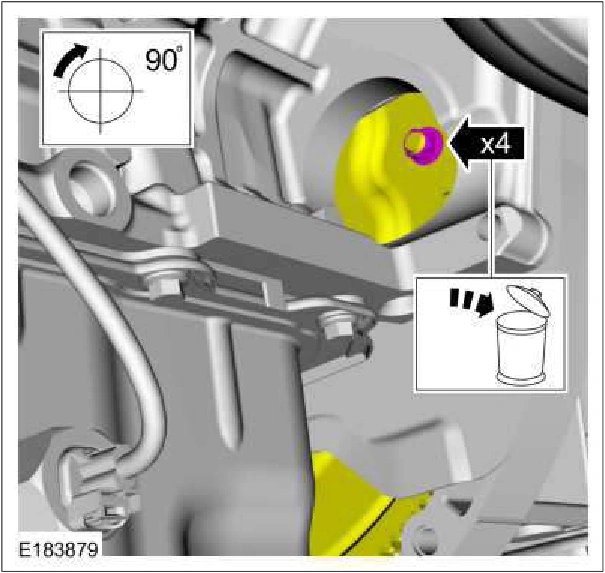

Engine — original illustration 1, reference 398Original colors & callouts · Select to enlarge

6-Speed Manual Transmission - MT82

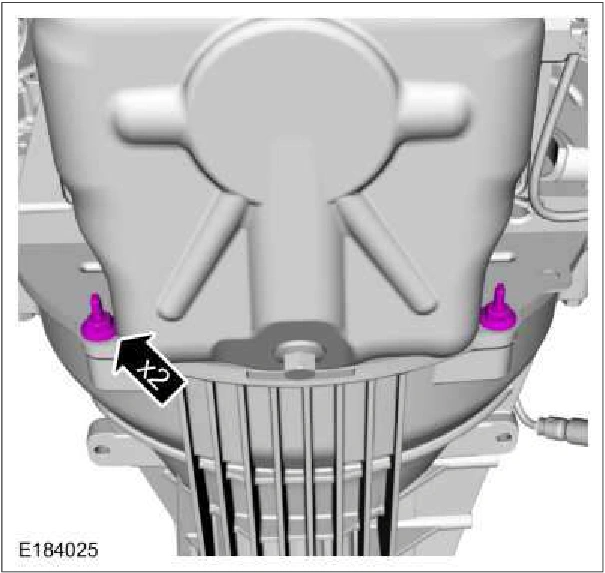

42. Remove the engine rear cover plate stud bolts.

Engine — original illustration 2, reference 398Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

43. Remove the top transmission-to-engine bolt and stud bolt.
