303-01C Engine - 5.0L

2016 Mustang5.0LReference 395 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 395Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

36. Rotate the transmission electrical connector.

Pull the transmission electrical connector out to disconnect. Detach the retainers and position the wiring harness aside.

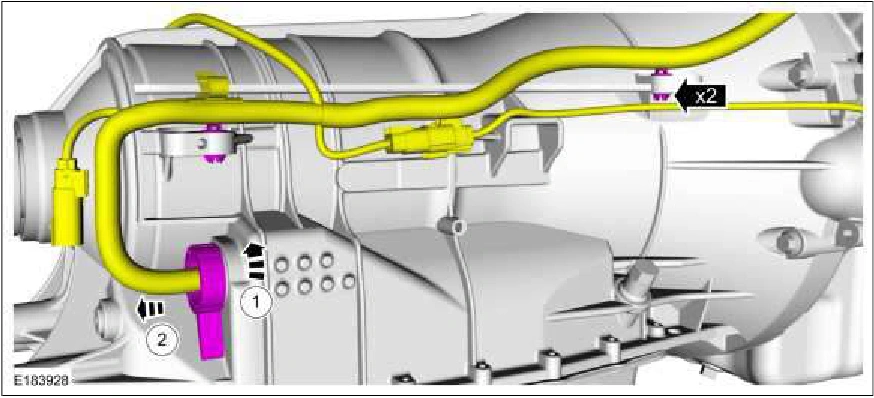

Engine — original illustration 2, reference 395Original colors & callouts · Select to enlarge

37. Remove the transmission cooling tube nut and bracket from the flexplate inspection cover stud bolt.

Source reference 395
