Engine — 2016 workshop reference 393

Engine — original illustration 1, reference 393Original colors & callouts · Select to enlarge

32. Detach the wiring harness retainers from the oil pan.

Engine — original illustration 2, reference 393Original colors & callouts · Select to enlarge

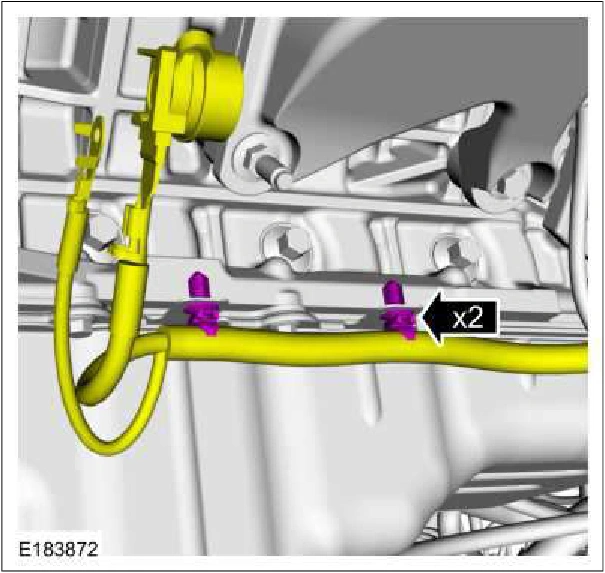

33. Remove the nut and the wiring harness retainer.

Detach the wiring harness retainer from the oil pan stud bolt.
