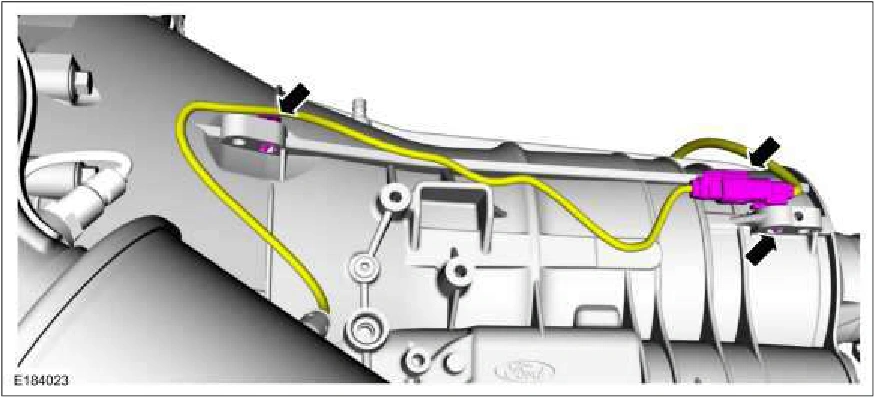

Engine — original illustration 1, reference 391Original colors & callouts · Select to enlarge

28. NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

1. Remove the bolts and the underbody shield.

2. Remove the bolts and the subframe bracket and underbody shield assembly.

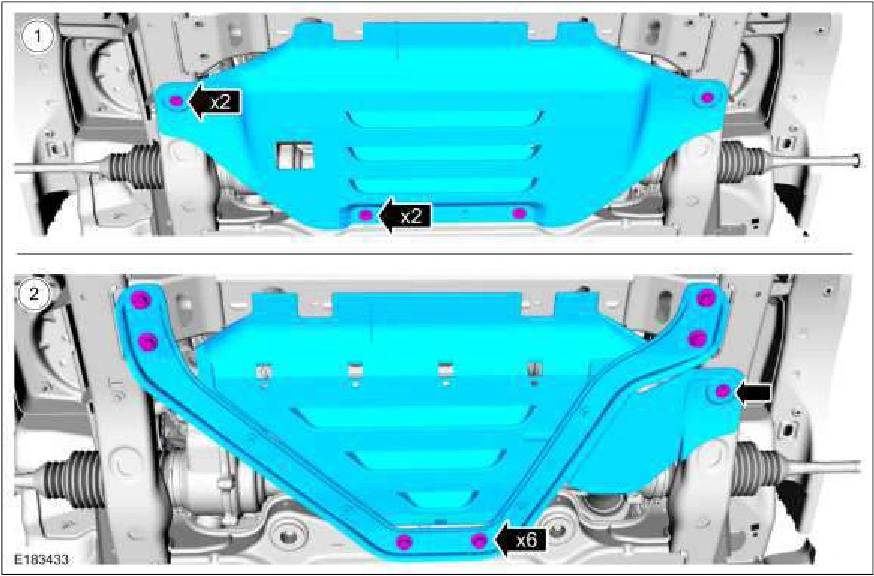

Engine — original illustration 2, reference 391Original colors & callouts · Select to enlarge

29. Remove the oil pan drain plug and drain the engine oil.

Use the General Equipment: Oil Drain Equipment Install the oil pan drain plug. Torque : 19 lb.ft (26 Nm)
