303-01C Engine - 5.0L

2016 Mustang5.0LReference 389 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 389Original colors & callouts · Select to enlarge

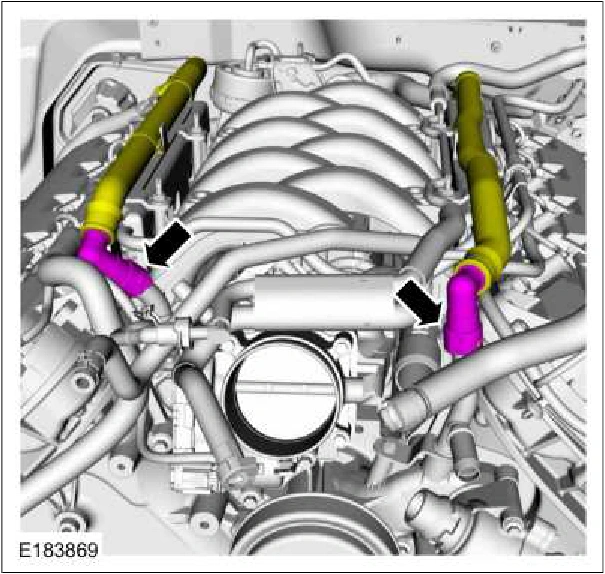

22. Disconnect the heater hose quick connect couplings.

Engine — original illustration 2, reference 389Original colors & callouts · Select to enlarge

23. Remove the intake manifold. Refer to: Intake Manifold (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

24. Detach the EVAP tube from the LH valve cover and the LH inner fender.

Source reference 389
